ZV SERIES-DE 2-1155
EAN 8422202211558
Castors with aluminium centre and black elastic rubber tyre with a hardness of 70º Shore A. Especially indicated to support high-loads up to 450 Kg.
It is used in: medium-heavy duty industrial sectors, logistics tranport tools, repair shops, outdoor areas, tool trolleys, internal logistics, tubular carts, mobile platforms, elevating platforms, logistics for military missions material, tool transport, restaurants, sweeping machines, polishing machines, mobile cranes, light machinery, elevating driven carts, elevating tables, roll containers and containers.
DE: ideal in the manual displacement of medium-loads. Noiseless. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

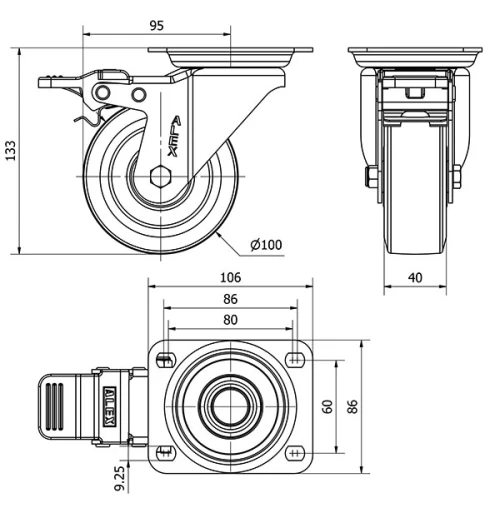

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Hardness of tread | 70º SHORE A |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 40 |
Plate dimensions (mm) | 106x86 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 95 |
Overall height (mm) | 133 |
Load | 200 |
Unit Weight of the wheel (kg) | 1.202 |
Volume (cm3) | 2074 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
