ZV SERIES-PGA 2-2384

Code: 2-2384

Grey rubber castors. Especially indicated to support high-loads up to 135 Kg.

It is used in tool trolleys, tubular carts, internal logistics, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, supermarkets, sweeping machines, polishing machines and light machines.

PGA: Smooth and noiseless castor. Does not leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

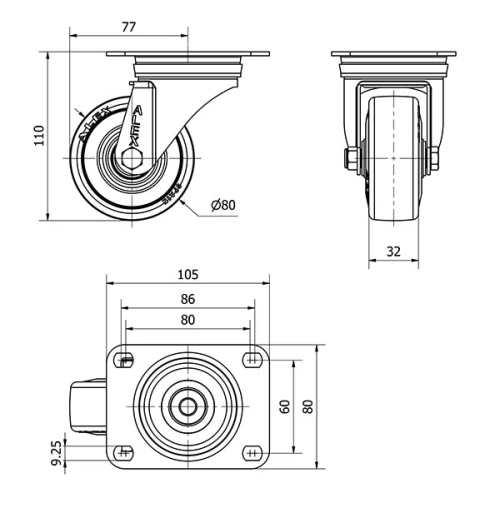

Technical Data 2-2384

EAN:

8422202223841

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

105x80

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

110

Load:

Unit Weight of the wheel (kg):

0,64

Volume (cm³):

1140
