ZV SERIES-PGA 2-2387

Code: 2-2387

Grey rubber castors. Especially indicated to support high-loads up to 135 Kg.

It is used in tool trolleys, tubular carts, internal logistics, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, supermarkets, sweeping machines, polishing machines and light machines.

PGA: Smooth and noiseless castor. Does not leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

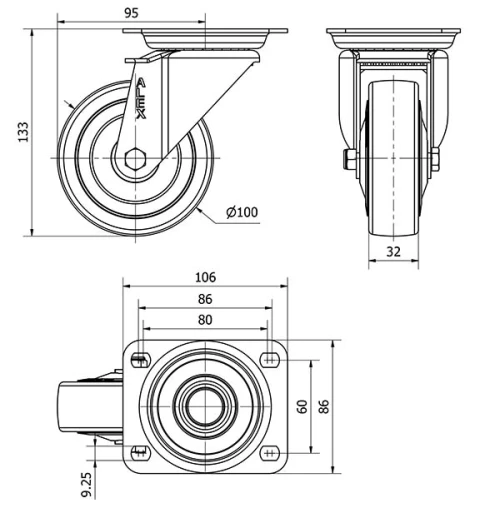

Technical Data 2-2387

EAN:

8422202223872

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

133

Load:

110

Unit Weight of the wheel (kg):

0,9

Volume (cm³):

1706

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
