ZV SERIES-PGA 2-2502
EAN 8422202225029
Grey rubber castors. Especially indicated to support high-loads up to 135 Kg.
It is used in tool trolleys, tubular carts, internal logistics, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, supermarkets, sweeping machines, polishing machines and light machines.
PGA: Smooth and noiseless castor. Does not leave marks on floor.

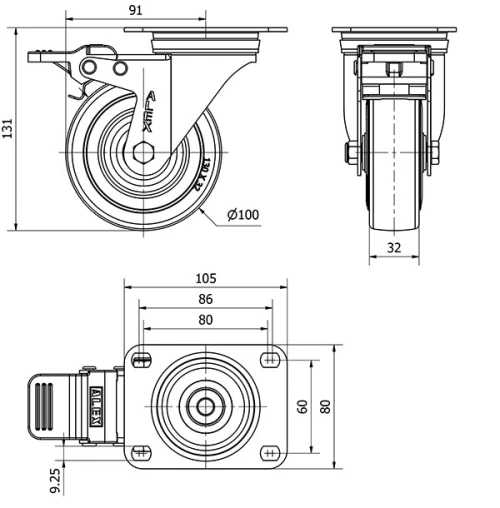

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 105x80 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 91 |
Overall height (mm) | 131 |
Load | 110 |
Unit Weight of the wheel (kg) | 0.86 |
Volume (cm3) | 1797 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
