Which castors do you need?
ZV SERIES-PGM 2-2752
EAN 8422202227528
Elastic blue rubber castors. Especially indicated to support high-loads up to 400 Kg.
It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatic factories, internal logistics, transport tools, food trolleys, kitchens, canteens, dining rooms, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms.
Suitable for mechanical engineering projects by draftsmen and project executors.
PGM: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic.

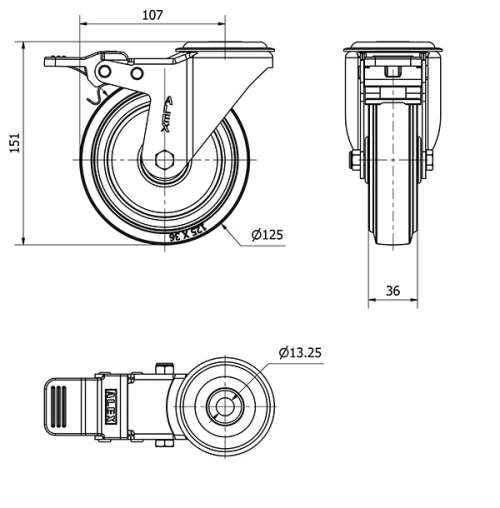

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 125 |
Width of tyre (mm) | 36 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 107 |
Overall height (mm) | 151 |
Load | 200 |
Unit Weight of the wheel (kg) | 1.002 |
Volume (cm3) | 1864 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
