ZV SERIES-PGM 2-4460

Code: 2-4460

Elastic blue rubber castors. Especially indicated to support high-loads up to 400 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatic factories, internal logistics, transport tools, food trolleys, kitchens, canteens, dining rooms, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms.

Suitable for mechanical engineering projects by draftsmen and project executors.

PGM: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Blue elastic rubber tyre on polypropylene centre

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

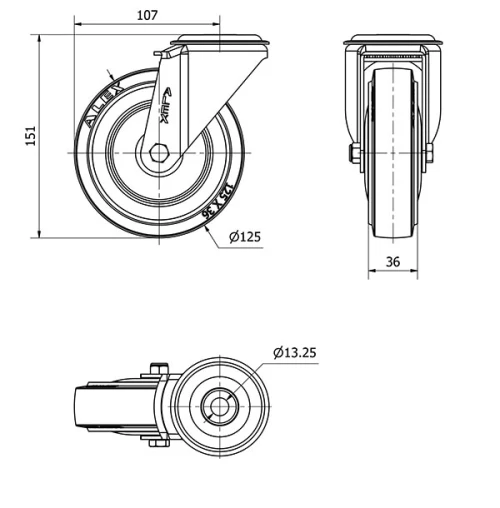

Technical Data 2-4460

EAN:

8422202244600

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

107

Overall height (mm):

151

Load:

200

Volume (cm³):

1568

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
