ZV SERIES-PGR 2-3765

Code: 2-3765

Elastic grey rubber castors. Especially indicated to suppor high-loads up to 400 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatic factories, transport tools, food trolleys, kitchens, canteens, dining rooms, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms.

Suitable for mechanical engineering projects by draftsmen and project executors.

PGR: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

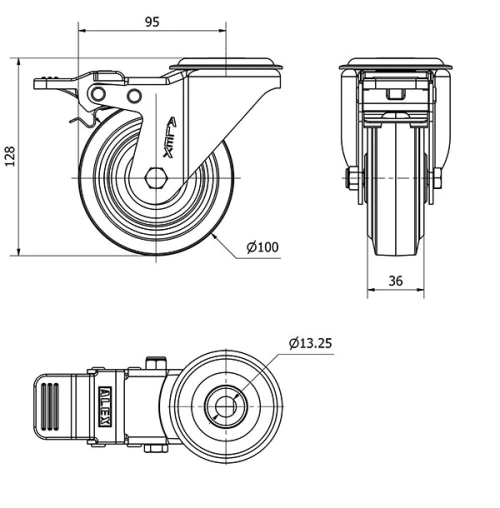

Technical Data 2-3765

EAN:

8422202237657

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Roller

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

128

Load:

150

Unit Weight of the wheel (kg):

0,73

Volume (cm³):

1527

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3763
