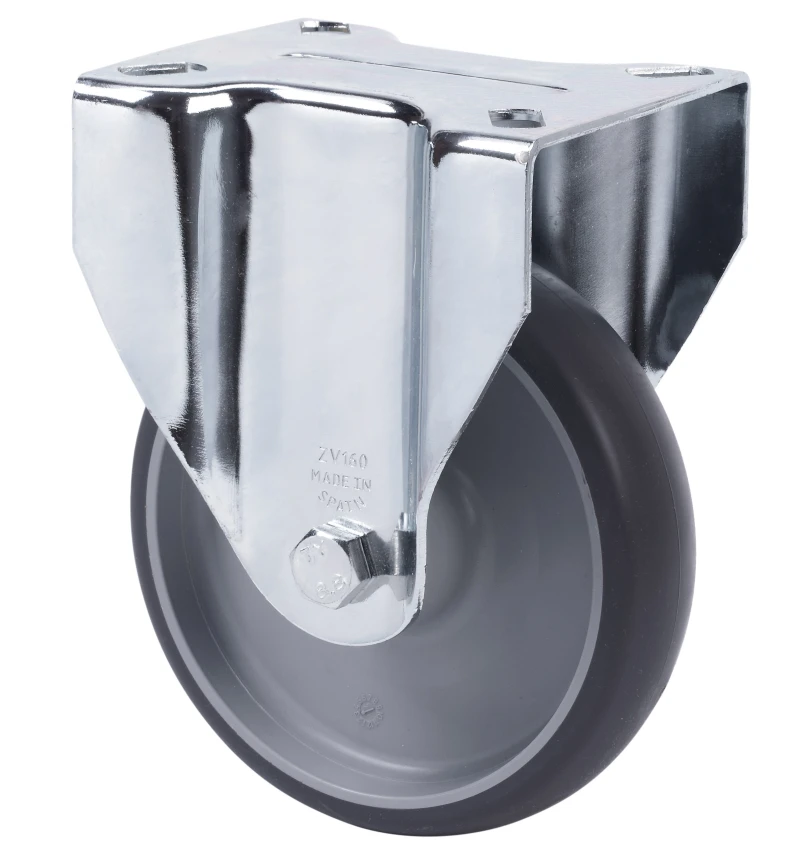

ZV SERIES-PGZ 2-3225

Code: 2-3225

Grey injected rubber castors with polypropylene centre. Especially indicated to support high-loads up to 180 Kg.

It is used in: logistics transport tools, food trolleys, kitchen, canteens, food industry, supermarkets, light machinery, paper containers, transport cages and roll containers.

Mainly used in the industrial sector, food industry and construction machinery.

Suitable for mechanical engineering projects by draftsmen and project executors.

PGZ: does not leave marks on floor. Easy to move with load.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Injected rubber tyre on polypropylene centre

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

Technical Data 2-3225

EAN:

8422202232256

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Roller

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

107x86

Distance between holes (mm):

80x60

Plate hole diameter (mm):

Overall height (mm):

133

Load:

100

Unit Weight of the wheel (kg):

0,595

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3215

2-3235
