Which castors do you need?
ZV SERIES-POA 2-4909
EAN 8422202249094
Castors with white polypropylene centre and soft blue injected polyurethane tyre with a hardness of 80º Shore A. Especially indicated to support high-loads up to 250 Kg.
It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, internal logistics, tranport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers and sport centres.
Mainly used in the aeronautic sector, railway, automobile factories, food industry, reapair shops and industrial activities.
Suitable for mechanical engineering projects by draftsmen and project executors.
POA: quieter rolling and vibrations absorption, clean and elastic. Very good wear resistance. Great resistance to oils.

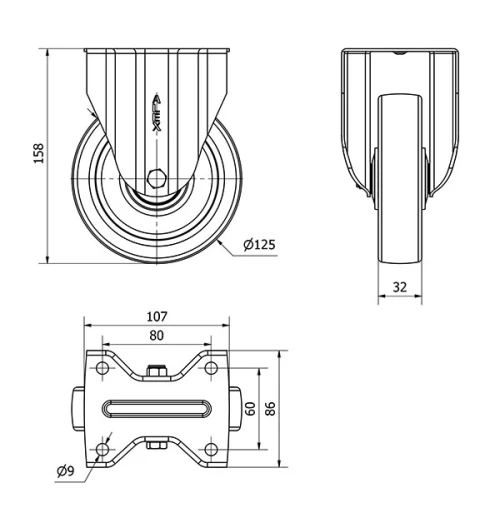

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 80º SHORE A |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 107x86 |
Distance between holes (mm) | 80x60 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 155 |
Load | 175 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
