ZV SERIES-POL 2-3450
EAN 8422202234502
Castors with white polypropylene centre and brown injected polyurethane tyre with a hardness of 95º Shore A. Especially indicated to support high-loads up to 300 Kg.
It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, internal logistics, transport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers, sport centres and sound boxes.
Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.
Suitable for mechanical engineering projects by draftsmen and project executors.
POL: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

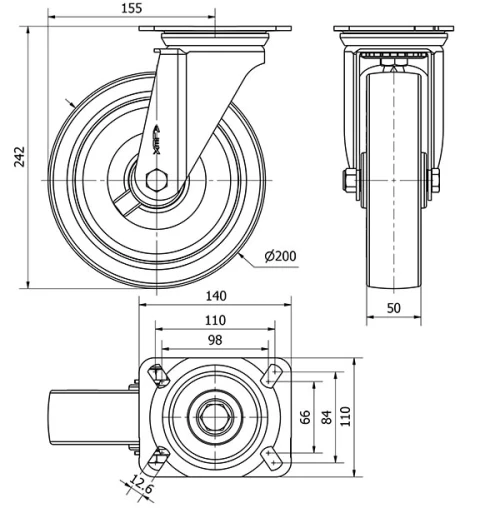

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Roller |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 153 |
Overall height (mm) | 242 |
Load | 300 |
Unit Weight of the wheel (kg) | 2.48 |
Volume (cm3) | 5936 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
