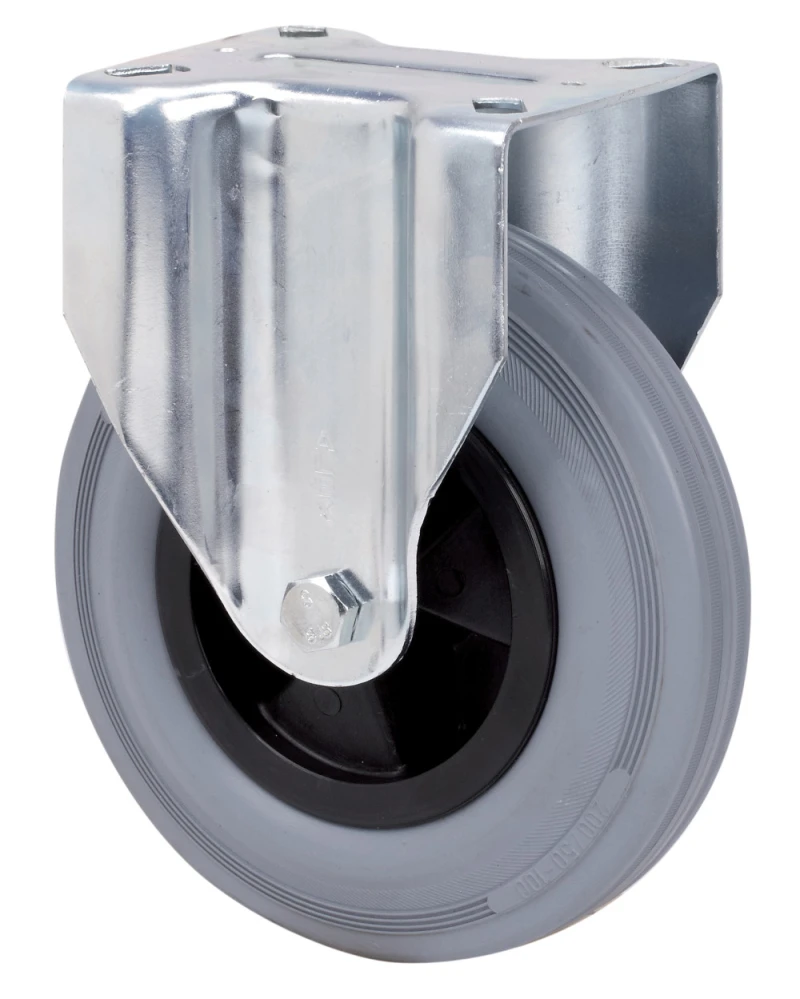

ZV SERIES-Grey PS 2-3552

Code: 2-3552

Grey rubber castors. Especially indicated to support high-loads up to 250 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, shopping trolleys, kitchen, canteens, dining rooms, restaurants, food industry, logistics for military missions material, tool transport, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

PS GREY: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations. Does noet leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

njected rubber tyre on polypropylene centre

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

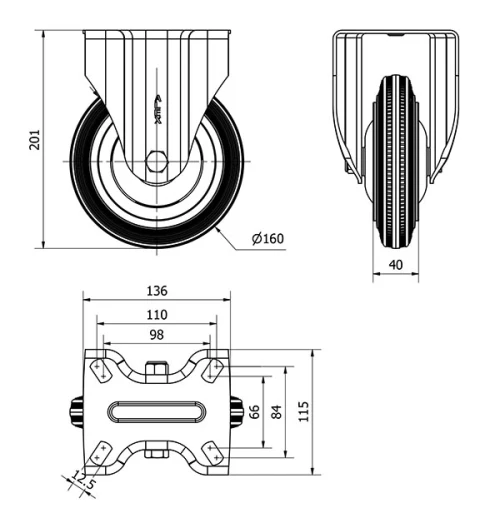

Technical Data 2-3552

EAN:

8422202235523

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

201

Load:

160

Unit Weight of the wheel (kg):

1,968

Volume (cm³):

3805
