ZV SERIES-Grey PS 2-3430

Code: 2-3430

Grey rubber castors. Especially indicated to support high-loads up to 250 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, shopping trolleys, kitchen, canteens, dining rooms, restaurants, food industry, logistics for military missions material, tool transport, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

PS GREY: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations. Does noet leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

njected rubber tyre on polypropylene centre

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

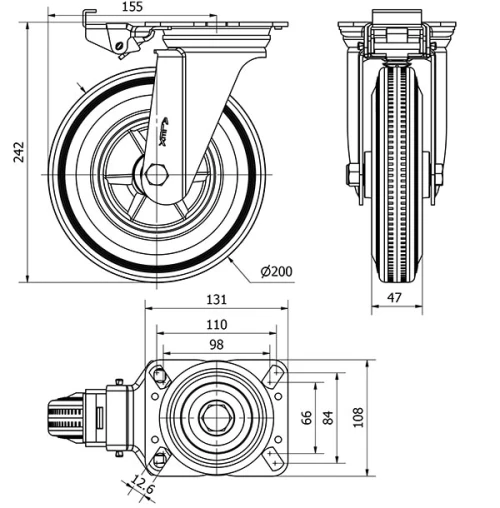

Technical Data 2-3430

EAN:

8422202234304

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Material:

Rubber

Bearing:

Roller

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

155

Overall height (mm):

242

Load:

215

Unit Weight of the wheel (kg):

2,594

Volume (cm³):

5715

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
