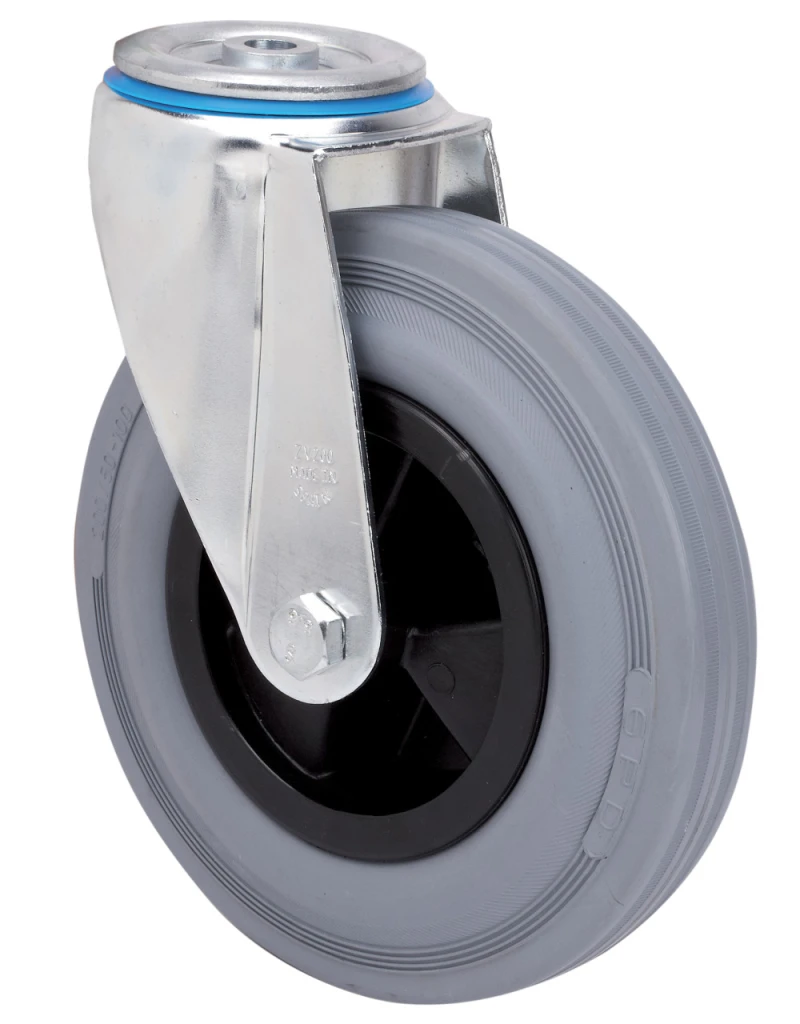

ZV SERIES-Grey PS 2-3410

Code: 2-3410

Grey rubber castors. Especially indicated to support high-loads up to 250 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, shopping trolleys, kitchen, canteens, dining rooms, restaurants, food industry, logistics for military missions material, tool transport, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

PS GREY: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations. Does noet leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

njected rubber tyre on polypropylene centre

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

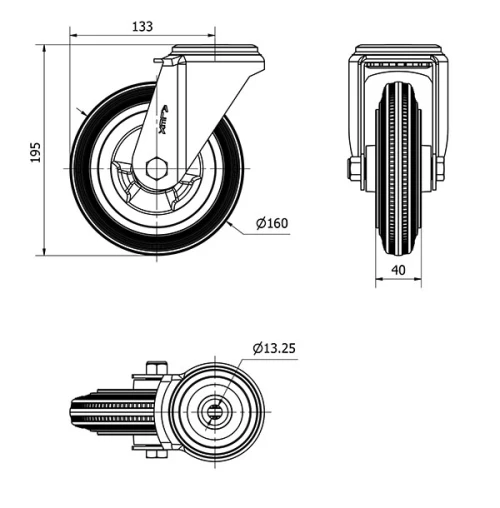

Technical Data 2-3410

EAN:

8422202234106

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Bearing:

Roller

Diameter (mm):

160

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

133

Overall height (mm):

195

Load:

160

Unit Weight of the wheel (kg):

1,863

Volume (cm³):

3196

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products
