ZV SERIES-PS 2-1072
EAN 8422202210728

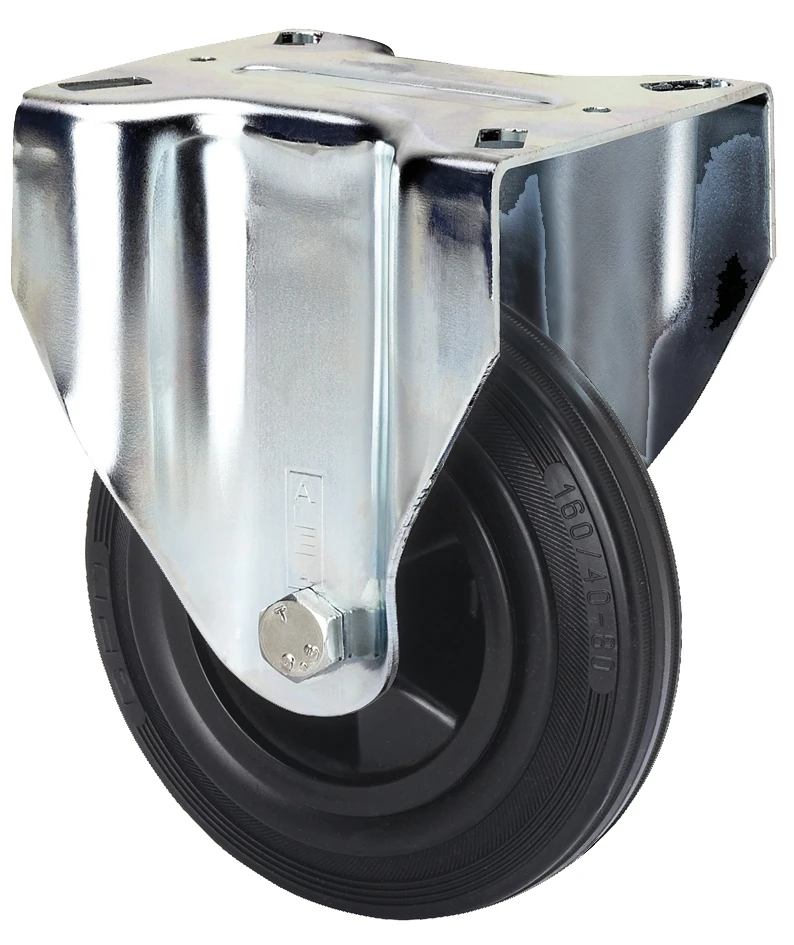

Black rubber castors. Especially indicated to support high-loads up to 215 Kg.
It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchen, canteen, dining room, restaurant, food industry, logistics for military missions material, tool transport, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.
PS: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

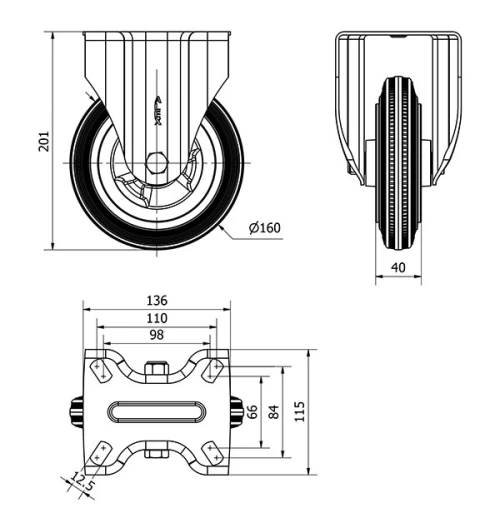

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 160 |
Width of tyre (mm) | 40 |
Plate dimensions (mm) | 136x116 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 201 |
Load | 160 |
Unit Weight of the wheel (kg) | 1.928 |
Volume (cm3) | 3805 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
