ZV SERIES-PS 2-0958

Code: 2-0958

Black rubber castors. Especially indicated to support high-loads up to 215 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchen, canteen, dining room, restaurant, food industry, logistics for military missions material, tool transport, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

PS: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

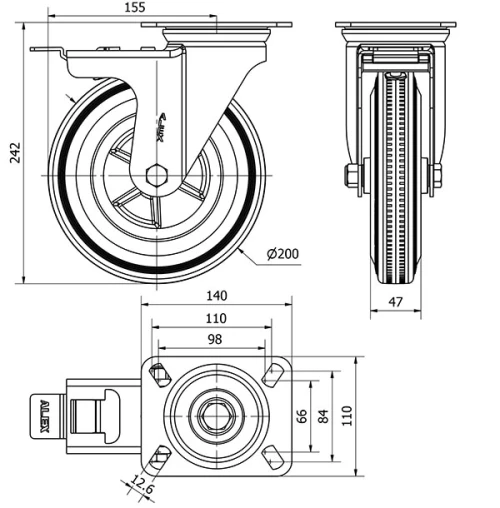

Technical Data 2-0958

EAN:

8422202209586

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

155

Overall height (mm):

242

Load:

215

Unit Weight of the wheel (kg):

3,305

Volume (cm³):

6442
