Which castors do you need?
ZV SERIES-PU 2-4272
EAN 8422202242729

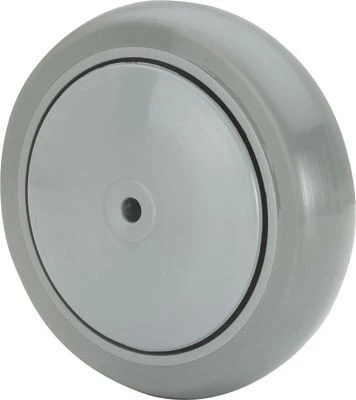

Castors with polypropylene centre and grey injected polyurethane tyre. Especially used to support high-loads up to 200 Kg.
It is used in: logistics transport tools, repair shops, food trolleys, kitchens, canteens, food industry and supermarkets.
Suitable for mechanical engineering projects by draftsmen and project executors.
PU: long useful life. Noiseless. Clean and undeformable.

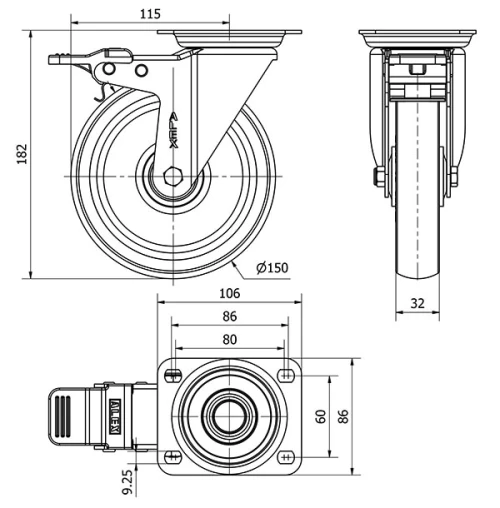

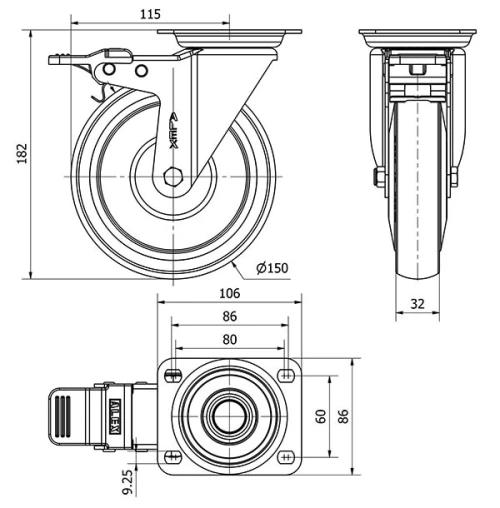

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Hardness of tread | 55º-60º SHORE D |
Bearing | Ball |
Diameter (mm) | 150 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 106x86 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 115 |
Overall height (mm) | 182 |
Load | 200 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
