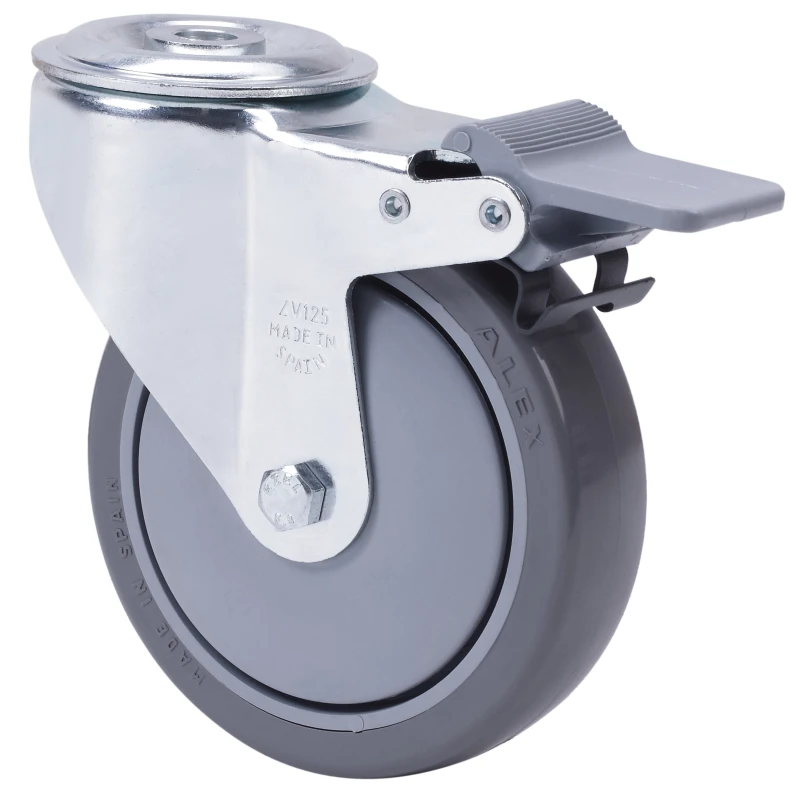

ZV SERIES-PU 2-4274

Code: 2-4274

Castors with polypropylene centre and grey injected polyurethane tyre. Especially used to support high-loads up to 200 Kg.

It is used in: logistics transport tools, repair shops, food trolleys, kitchens, canteens, food industry and supermarkets.

Suitable for mechanical engineering projects by draftsmen and project executors.

PU: long useful life. Noiseless. Clean and undeformable.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Grey polyurethane tyre on polypropylene centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

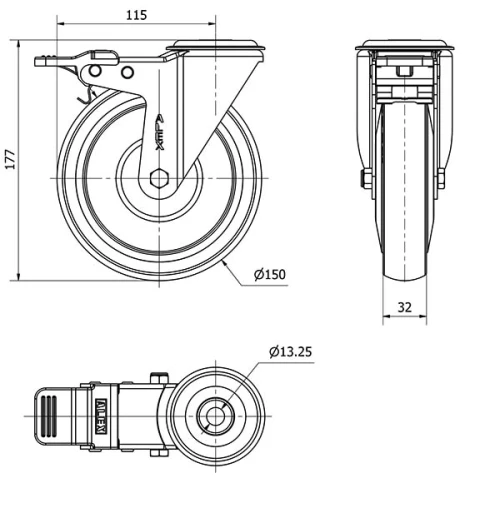

Technical Data 2-4274

EAN:

8422202242743

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

115

Overall height (mm):

177

Load:

175

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-4273
