ZV SERIES-TA 2-3347

Code: 2-3347

Steel castors, especially indicated to support high-loads up to 400 Kg.

Mainly used in the industrial sector, mining industry, food industry and agricultural farms.

Suitable for mechanical engineering projects by draftsmen and project executors.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

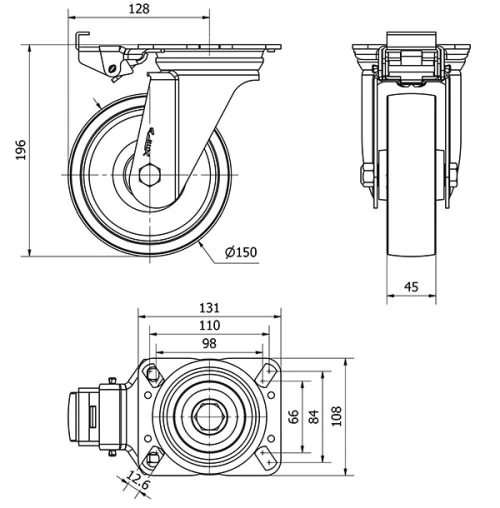

Technical Data 2-3347

EAN:

8422202233475

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Material:

Cast Iron

Bearing:

Plain

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

128

Overall height (mm):

196

Load:

350

Unit Weight of the wheel (kg):

4,908

Volume (cm³):

4099
