ZV SERIES-TA 2-2512

Code: 2-2512

Steel castors, especially indicated to support high-loads up to 400 Kg.

Mainly used in the industrial sector, mining industry, food industry and agricultural farms.

Suitable for mechanical engineering projects by draftsmen and project executors.

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

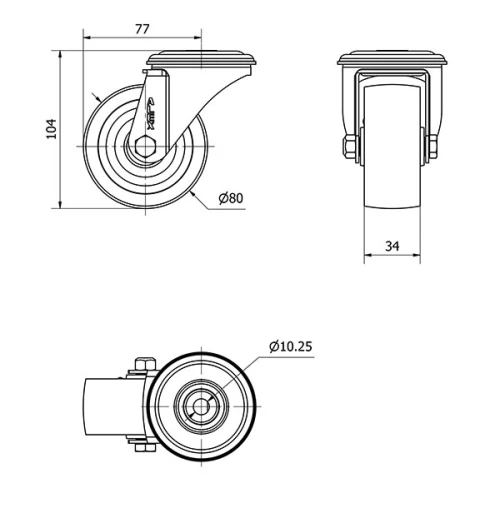

Technical Data 2-2512

EAN:

8422202225128

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

104

Load:

150

Unit Weight of the wheel (kg):

1,106

Volume (cm³):

821

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-4072
