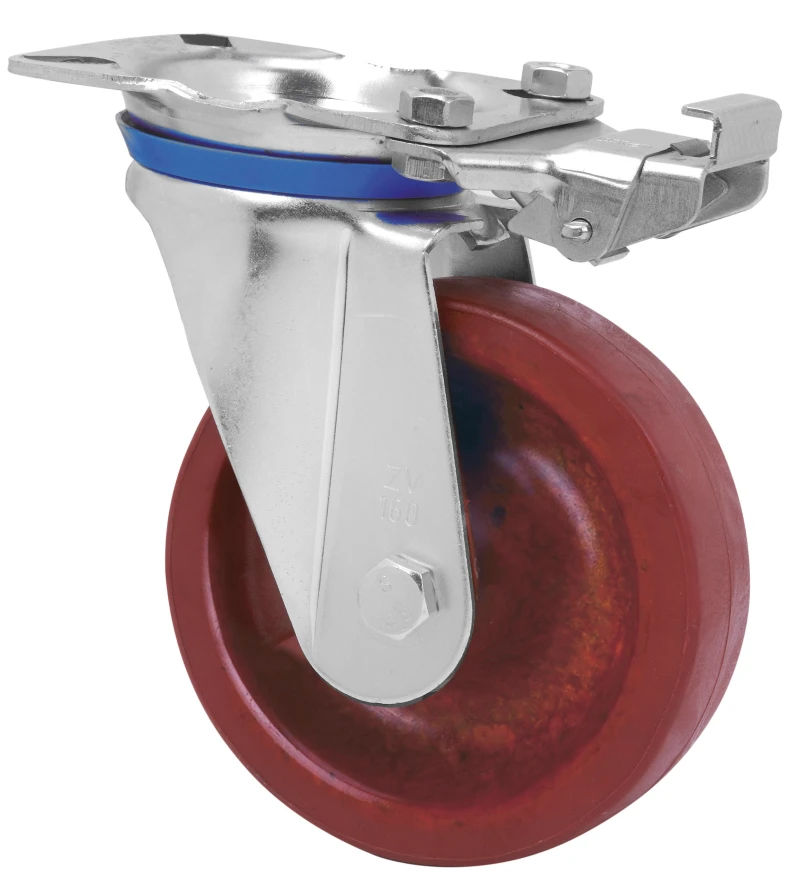

ZV SERIES-TD 2-3346

See comparative

Code: 2-3346

Reinforced resine castors, especially indicated to stand high temperatures up to 200º and high-loads up to 400 Kg.

It is used in: furnaces and light machinery.

Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

TD: reinforced resine castor. Indicated to the industrial sectors.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

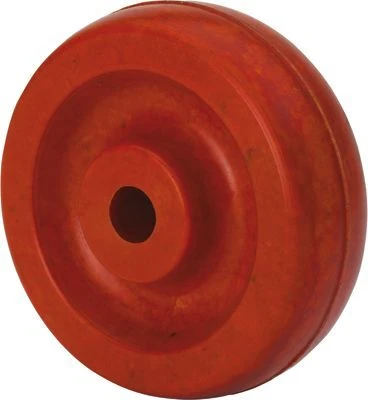

Wheel

Resin wheel up to 200ºC when not in continuous use

Temperature range: -40º ÷ +200º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

Technical Data 2-3346

EAN:

8422202233468

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Lock Type:

Directional Lock

Material:

Phenolic Resin Wheel

Low Temperature (ºC):

-40

Maximum Temperature (ºC):

200

Bearing:

Plain

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

128

Overall height (mm):

196

Load:

400

Unit Weight of the wheel (kg):

2,009

Volume (cm³):

4099
