ZV SERIES-TD 2-1088

See comparative

Code: 2-1088

Reinforced resine castors, especially indicated to stand high temperatures up to 200º and high-loads up to 400 Kg.

It is used in: furnaces and light machinery.

Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

TD: reinforced resine castor. Indicated to the industrial sectors.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Resin wheel up to 200ºC when not in continuous use

Temperature range: -40º ÷ +200º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

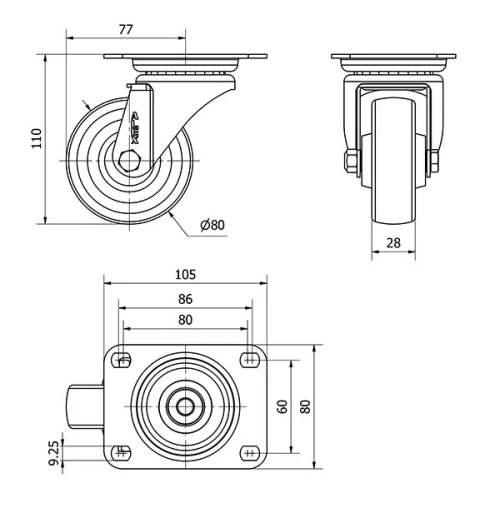

Technical Data 2-1088

EAN:

8422202210889

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Phenolic Resin Wheel

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

105x80

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

110

Load:

200

Unit Weight of the wheel (kg):

0,697

Volume (cm³):

1140
