Which castors do you need?
EAN 8422202210902

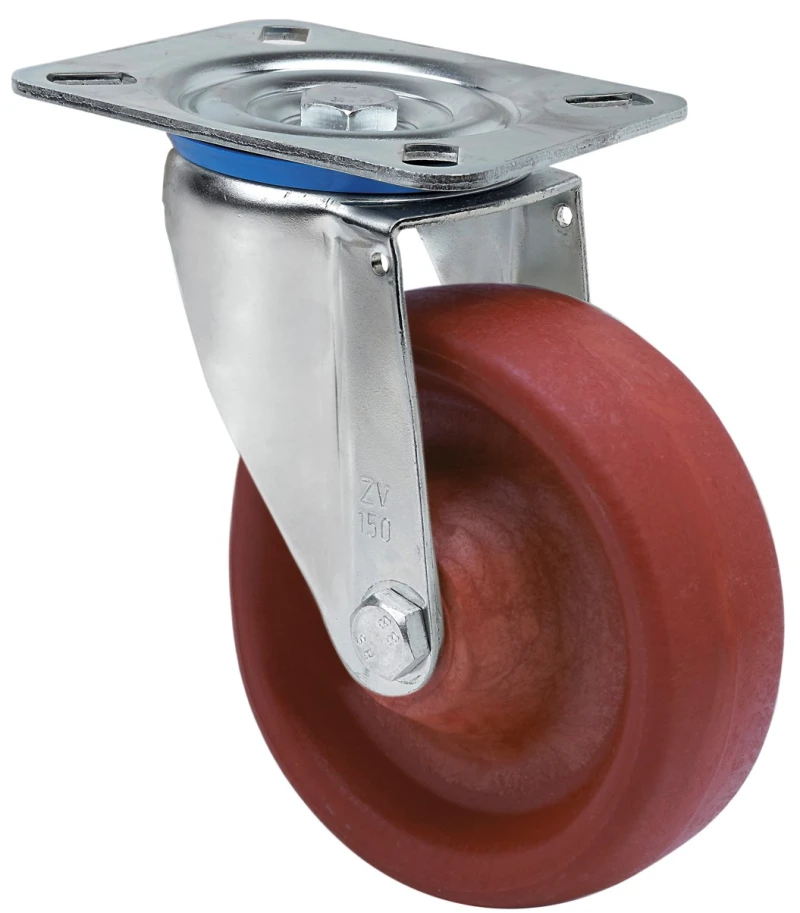

Reinforced resine castors, especially indicated to stand high temperatures up to 200º and high-loads up to 400 Kg.
It is used in: furnaces and light machinery.
Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
TD: reinforced resine castor. Indicated to the industrial sectors.

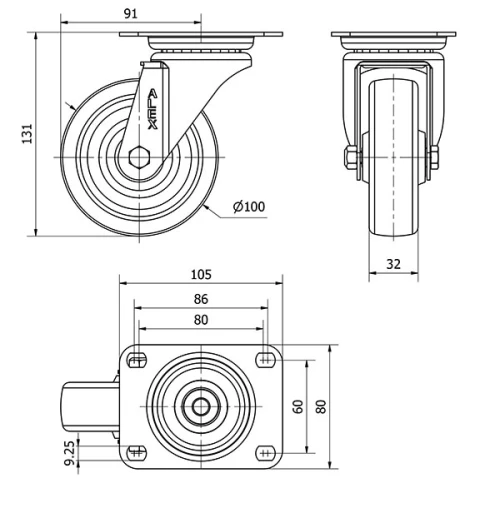

| Housing Type | Swivel |
|---|---|
| Fitting Type | Plate |
| Braking System | Without Brake |
| Material | Phenolic Resin Wheel |
| Bearing | Plain |
| Diameter (mm) | 100 |
| Width of tyre (mm) | 32 |
| Plate dimensions (mm) | 105x80 |
| Distance between holes (mm) | 86/80x60 |
| Plate hole diameter (mm) | 8 |
| Offset (mm) | 91 |
| Overall height (mm) | 131 |
| Load | 150 |
| Unit Weight of the wheel (kg) | 0.714 |
| Volume (cm3) | 1504 |
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
Rolling Resistence Very Good
Noise during the march Reasonable
Floor Protection Reasonable
