ZV SERIES-TT 2-4526

Code: 2-4526

Resine castors, especially indicated to stand high temperatures up to 300º and high-loads up to 125 Kg.

It is used in: furnaces and light machinery. Mainly used in industrial sectors, aeronautic sector, automobile factories, food industry and vending machines.

Suitable for mechanical engineering projects by draftsmen and project executors.

TT: resine castor. Indicated for the industrial sectors.

Can withstand up to 280ºC in 30 minutes intervals.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Resin wheel up to 280ºC when not in continuous use

Temperature range: -30º ÷ +280º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

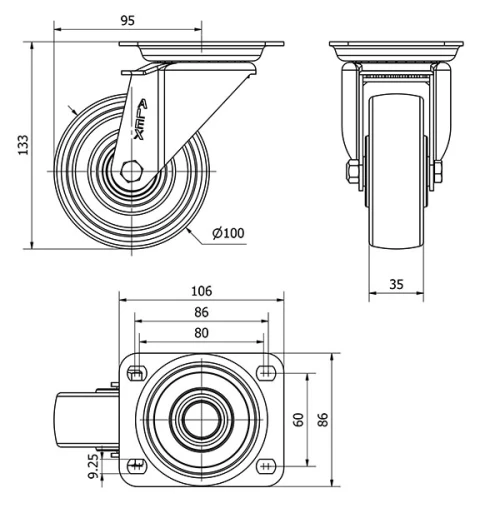

Technical Data 2-4526

EAN:

8422202245263

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Phenolic Resin Wheel

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

133

Load:

125
