Which castors do you need?
EAN 8422202210971
Resine castors, especially indicated to stand high temperatures up to 300º and high-loads up to 125 Kg.
It is used in: furnaces and light machinery. Mainly used in industrial sectors, aeronautic sector, automobile factories, food industry and vending machines.
Suitable for mechanical engineering projects by draftsmen and project executors.
TT: resine castor. Indicated for the industrial sectors.
Can withstand up to 280ºC in 30 minutes intervals.

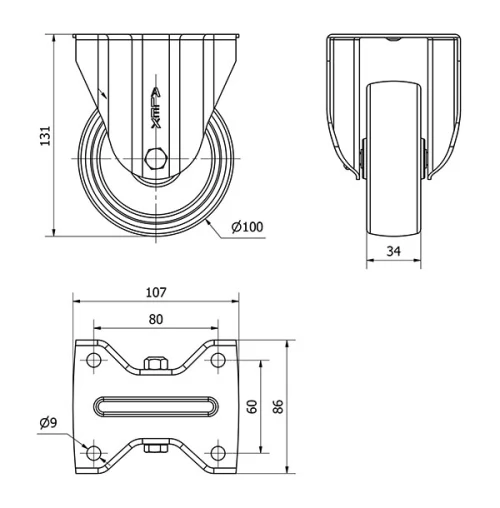

| Housing Type | Fixed |
|---|---|
| Fitting Type | Plate |
| Braking System | Without Brake |
| Material | Phenolic Resin Wheel |
| Bearing | Plain |
| Diameter (mm) | 100 |
| Width of tyre (mm) | 34 |
| Plate dimensions (mm) | 107x86 |
| Distance between holes (mm) | 80x60 |
| Plate hole diameter (mm) | 8 |
| Overall height (mm) | 131 |
| Load | 125 |
| Unit Weight of the wheel (kg) | 0.617 |
| Volume (cm3) | 1205 |
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
Rolling Resistence Very Good
Noise during the march Reasonable
Floor Protection Reasonable
