ZV SERIES-UT 2-4129

Code: 2-4129

White polypropylene castor, especially indicated to support high-loads up to 400 Kg.

It is used in: internal logistics tools, repair shops, tool trolleys, internal logistics, mobile platforms, tool transport, elevating platforms, food industry, transport carts, logistics for military missions material, ladders, packaging machines, conveyor belts, light machinery for the construction, elevating tables, boilers, cabinetmaker's, locksmith's, metalworks, agricultural farms, meat industry, textile, sport centres, containers and transport cages.

Mainly used in the industrial sector, aeronautic sector, automobile factories, food industry, textile, agricultural, poultry farms, freezers, freezer cabinets and tubular carts.

Suitable for mechanical engineering projects by draftsmen and project executors.

UT: undeformable and resistant. Easy to start and move.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

White Polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

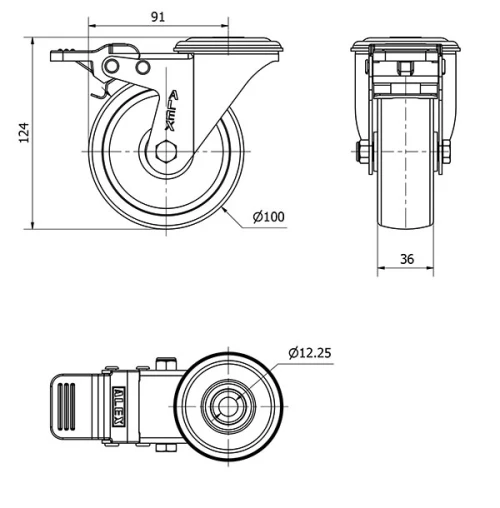

Technical Data 2-4129

EAN:

8422202241296

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polypropylene

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

124

Load:

150
