ZV SERIES-AUAGB 2-4396
EAN 8422202243962

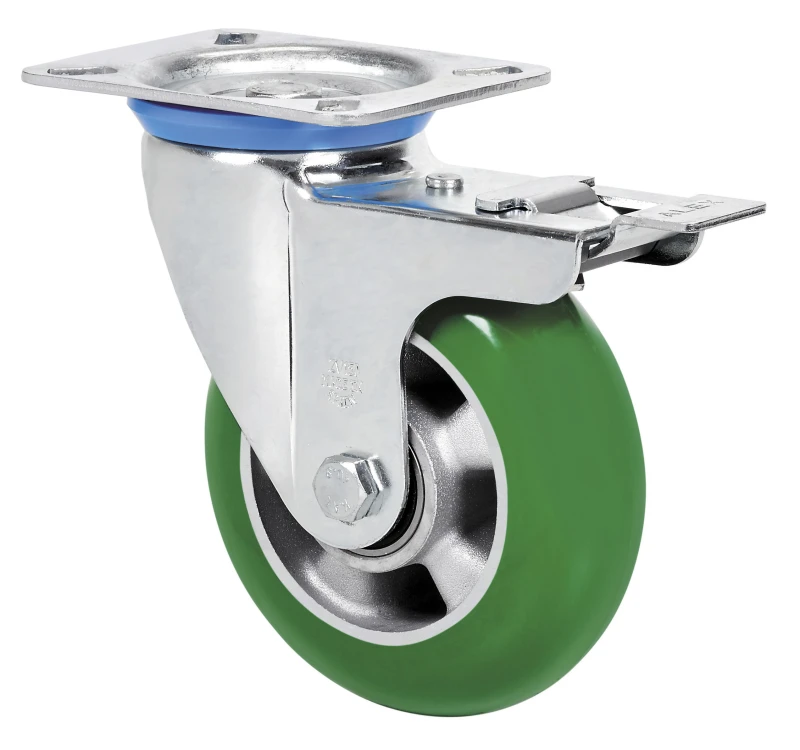

Aluminium centre with cast green polyurethane round shaped (crown) tread (80º Shore A hardness). Especially designed to support loads up to 650 kg.
Used in: transport equipment, workshops, outdoor areas, internal logistics, tool trolleys, tyre manufacturing companies, internal logistics, tool trolleys, transport equipment, lifting platforms, transport trolleys, ladders, sweepers, polishers, packaging machinery, conveyor belts, portable cranes, forklifts, boilermaking, joinery, agricultural farms, lifting tables, meat industries, waste bins, sport halls.
Mainly used in the aeronautic sector, railway, automobile factories, food industries, workshops.
Suitable for mechanical engineering projects by draftsmen and project executors.
AUAGB Wheel: High load capacity green polyurethane with round tread. Less turning resistance and easier rolling thanks to its convex shape.
Low turning resistance and easier rolling.

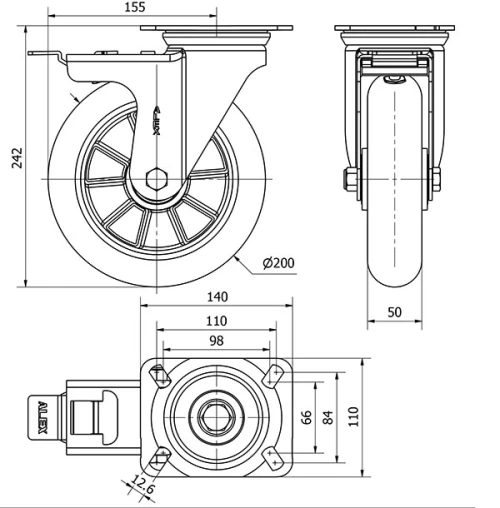

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Hardness of tread | 80º SHORE A |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 155 |
Overall height (mm) | 242 |
Load | 400 |
Unit Weight of the wheel (kg) | 3.36 |
Volume (cm3) | 6442 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
