Code: 2-4393

Aluminium centre with cast green polyurethane round shaped (crown) tread (80º Shore A hardness). Especially designed to support loads up to 650 kg.

Used in: transport equipment, workshops, outdoor areas, internal logistics, tool trolleys, tyre manufacturing companies, internal logistics, tool trolleys, transport equipment, lifting platforms, transport trolleys, ladders, sweepers, polishers, packaging machinery, conveyor belts, portable cranes, forklifts, boilermaking, joinery, agricultural farms, lifting tables, meat industries, waste bins, sport halls.

Mainly used in the aeronautic sector, railway, automobile factories, food industries, workshops.

Suitable for mechanical engineering projects by draftsmen and project executors.

AUAGB Wheel: High load capacity green polyurethane with round tread. Less turning resistance and easier rolling thanks to its convex shape.

Low turning resistance and easier rolling.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

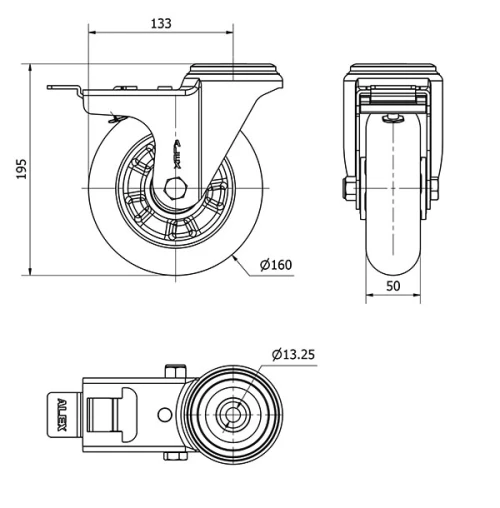

Technical Data 2-4393

EAN:
8422202243931
Housing Type:
Swivel
Fitting Type:
Bolt hole
Braking System:
Wheel Brake And Fork
Material:
Polyurethane
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80º SHORE A
Bearing:
Ball
Diameter (mm):
160
Width of tyre (mm):
50
Plate hole diameter (mm):
12
Offset (mm):
133
Overall height (mm):
201
Load:
300
Unit Weight of the wheel (kg):
2,51
Volume (cm3):
3761
:
BALONA
Technical Data 2-4393
