Which castors do you need?
ZV SERIES-DEGB 2-4361
EAN 8422202243610
Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg.
For use in industries to support medium to heavy duty loads: transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, tubular trolleys, mobile grandstands, lifting platforms, military missions material, restaurants, sweepers, polishers, mobile cranes, light machinery, forklifts, lift tables, roll containers, waste bins.
DEGB wheel: perfect for medium duty loads' manual movement. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

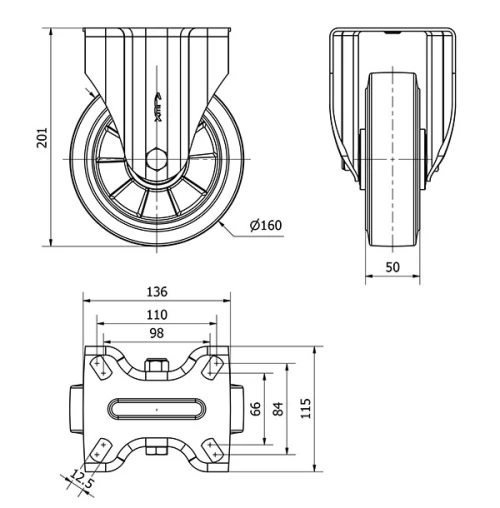

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 70 |
Hardness of tread | 70º SHORE A |
Bearing | Ball |
Color | Gray |
Diameter (mm) | 160 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 136x116 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 133 |
Overall height (mm) | 201 |
Load | 350 |
Unit Weight of the wheel (kg) | 2194 |
Volume (cm3) | 3410 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
