ZV SERIES-DEGB 2-4365

Code: 2-4365

Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg.

For use in industries to support medium to heavy duty loads: transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, tubular trolleys, mobile grandstands, lifting platforms, military missions material, restaurants, sweepers, polishers, mobile cranes, light machinery, forklifts, lift tables, roll containers, waste bins.

DEGB wheel: perfect for medium duty loads' manual movement. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

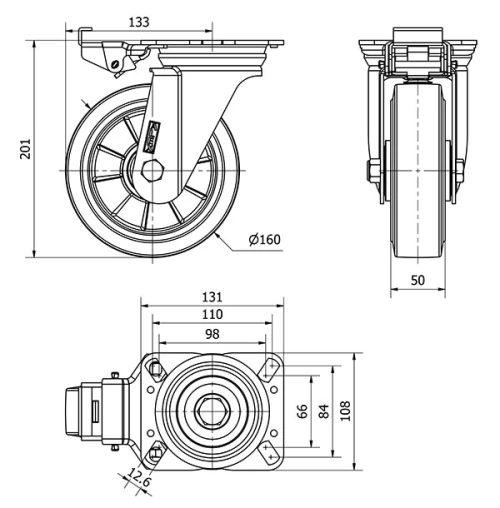

Technical Data 2-4365

EAN:

8422202243658

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Directional Lock

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

70º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

133

Overall height (mm):

201

Load:

350

Unit Weight of the wheel (kg):

2915

Volume (cm³):

4,312

NO DEJA HUELLA

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
