ZV SERIES-DEGB 2-4364

Code: 2-4364

Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg.

For use in industries to support medium to heavy duty loads: transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, tubular trolleys, mobile grandstands, lifting platforms, military missions material, restaurants, sweepers, polishers, mobile cranes, light machinery, forklifts, lift tables, roll containers, waste bins.

DEGB wheel: perfect for medium duty loads' manual movement. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

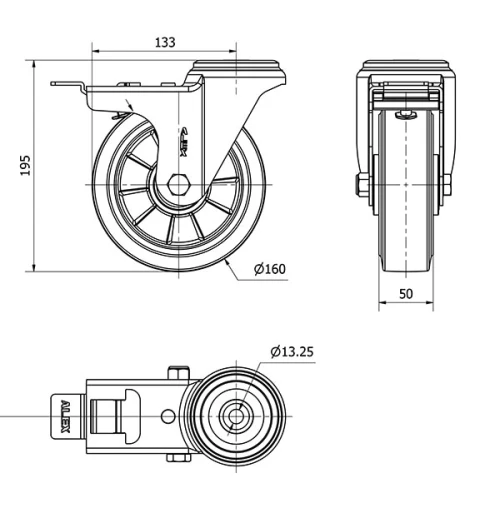

Technical Data 2-4364

EAN:

8422202243641

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

70º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

160

Width of tyre (mm):

Plate hole diameter (mm):

Overall height (mm):

195

Load:

300

Unit Weight of the wheel (kg):

2417

Volume (cm³):

3761

NO DEJA HUELLA

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
