ZV SERIES-PGAIB (AH PEQ) 2-5198

Code: 2-5198

Injection-moulded grey rubber. Especially designed to support loads up to 125 Kg.

Used in tool trolleys, tubular trolleys, internal logistics, transport equipment, lifting platforms, workshops, food trolleys, kitchens, canteens, dining halls, restaurants, supermarkets, sweepers, polishers, light machinery.

PGAIB: Noiseless wheel, high vibrations' absorption. Non-marking. Easy rolling.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

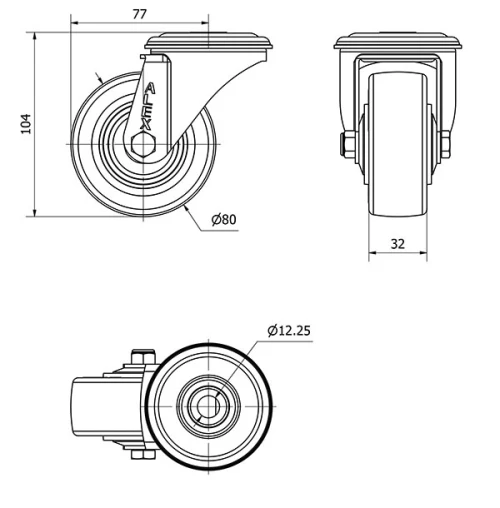

Technical Data 2-5198

EAN:

8422202251981

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

104

Load:

Volume (cm³):

821

Diameter Attribute:

ANTIHILOS PEQUEÑO
