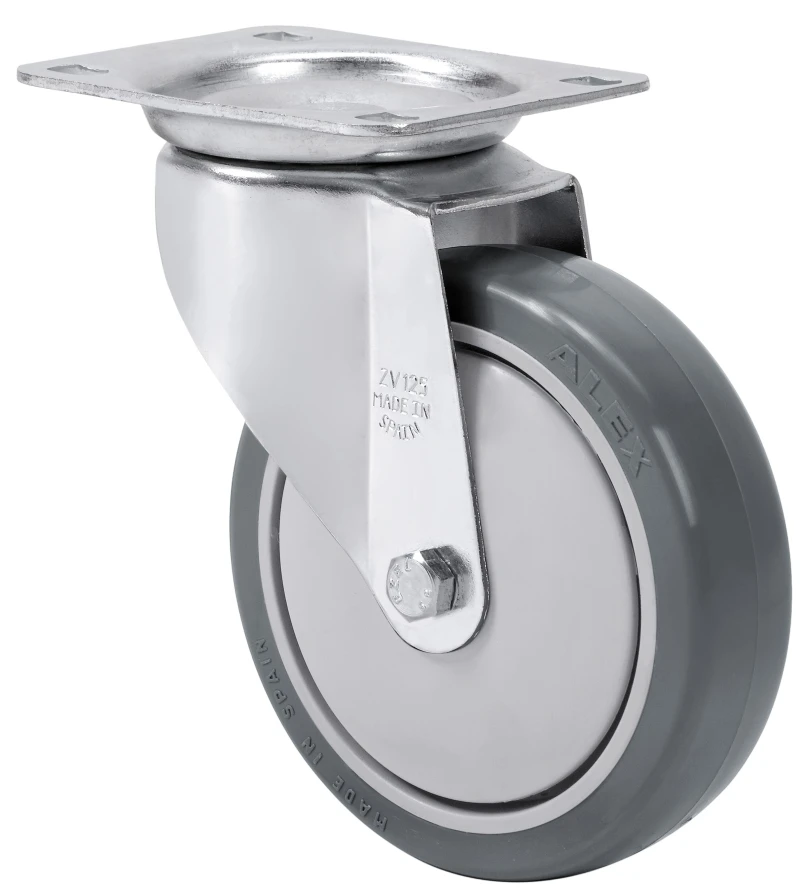

ZV SERIES-PGAIB 2-4780

Code: 2-4780

Injection-moulded grey rubber. Especially designed to support loads up to 125 Kg.

Used in tool trolleys, tubular trolleys, internal logistics, transport equipment, lifting platforms, workshops, food trolleys, kitchens, canteens, dining halls, restaurants, supermarkets, sweepers, polishers, light machinery.

PGAIB: Noiseless wheel, high vibrations' absorption. Non-marking. Easy rolling.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

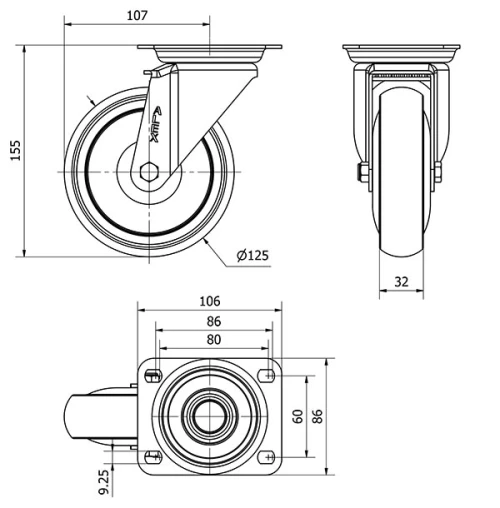

Technical Data 2-4780

EAN:

8422202247809

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

107

Overall height (mm):

155

Load:

125

Unit Weight of the wheel (kg):

0,939

Volume (cm³):

2,133

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-4781

2-4782
