ZV SERIES-PGC 2-4706

Code: 2-4706

ZV-PGC Heavy-medium duty castors with grey electrically conductive polyurethane wheels. Used in hospitals, operating rooms and food factories. Antistatic wheels with polypropylene centre and grey injected polyurethane tread. Especially designed to support loads up to 200 kg.

Used in: transport equipment, car and food factories, operating rooms and hospitals. Suitable for mechanical engineering projects by draftsmen and project executors.

PGC: Non-marking. Easy rolling. Noiseless. Electrically conductive.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

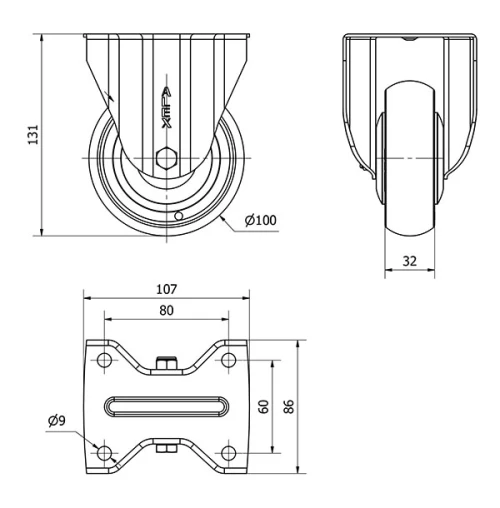

Technical Data 2-4706

EAN:

8422202247069

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Low Temperature (ºC):

-25

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

107x86

Distance between holes (mm):

80x60

Plate hole diameter (mm):

Overall height (mm):

131

Load:

100

Unit Weight of the wheel (kg):

0,655

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-4705

2-4707
