ZV SERIES-PGC 2-4700
EAN 8422202247007
ZV-PGC Heavy-medium duty castors with grey electrically conductive polyurethane wheels. Used in hospitals, operating rooms and food factories. Antistatic wheels with polypropylene centre and grey injected polyurethane tread. Especially designed to support loads up to 200 kg.
Used in: transport equipment, car and food factories, operating rooms and hospitals. Suitable for mechanical engineering projects by draftsmen and project executors.
PGC: Non-marking. Easy rolling. Noiseless. Electrically conductive.

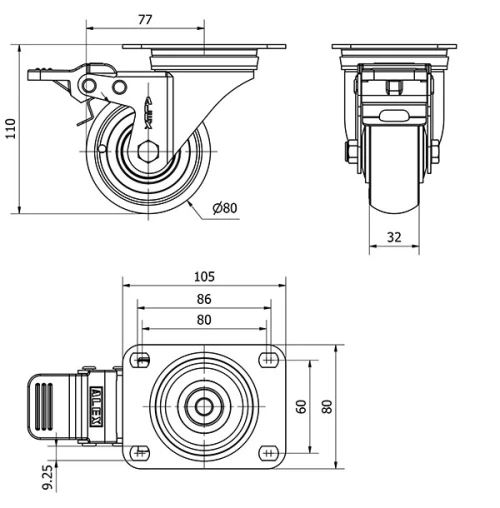

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Low Temperature (ºC) | -25 |
Maximum Temperature (ºC) | 80 |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 80 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 105x80 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 77 |
Overall height (mm) | 110 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.704 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
