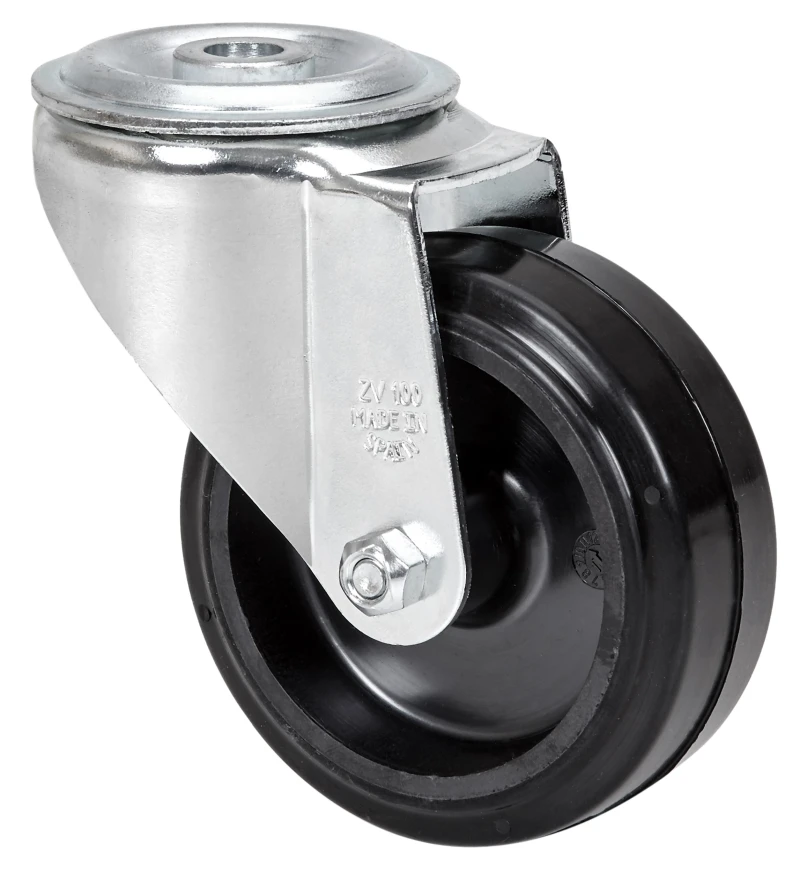

ZV SERIES-THG 2-4443

Code: 2-4443

Heat-resistant castors with black rubber tyre up to 250ºC in 30 minutes intervals. Especially designed to support loads up to 100kg.

Used in ovens and light machinery. Aeronautic and food industries and car factories, vending machines.

Suitable for mechanical engineering projects by draftsmen and project executors.

THG:perfect for medium duty loads' manual movement. Noiseless. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

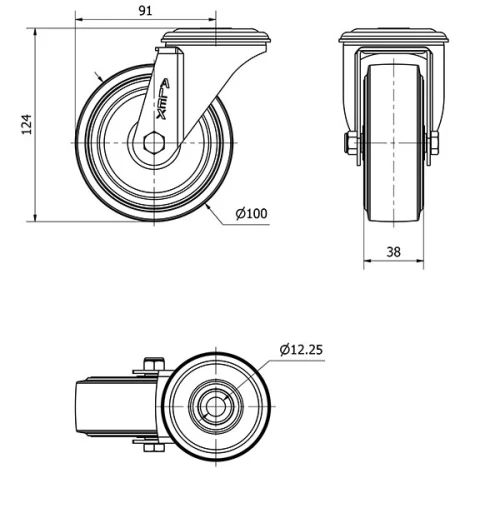

Technical Data 2-4443

EAN:

8422202244433

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-30

Maximum Temperature (ºC):

250

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

124

Load:

100

Unit Weight of the wheel (kg):

0,73

Volume (cm³):

1111
