Which castors do you need?
A SERIES-PGAIB 2-2667
EAN 8422202226675

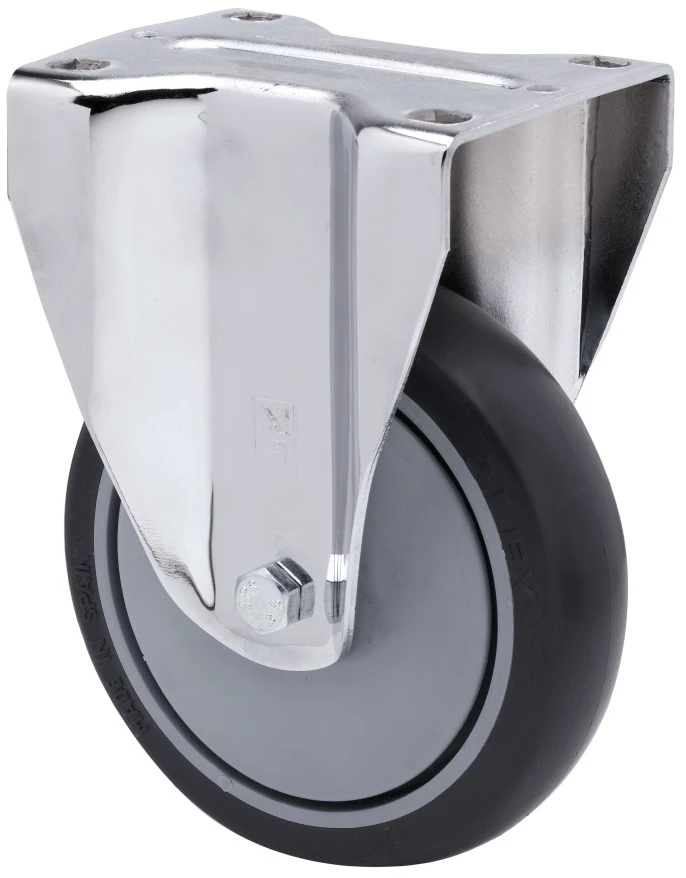

Castors with polypropylene centre and thermoplastic grey rubber tyre. Especially indicated to support high-loads up to 100 Kg.
It is used in: operating rooms, beds, hospital uses and catering (kitchens, etc).
PGAIB: noiseless and absorbs vibrations. Does not leave marks on floor. Easy to move.

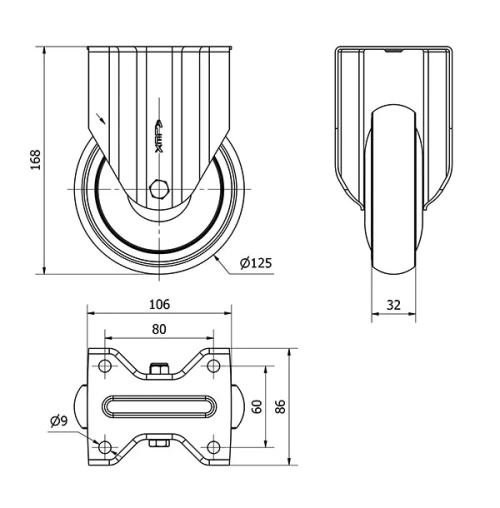

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 107x86 |
Distance between holes (mm) | 80x60 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 168 |
Load | 125 |
Unit Weight of the wheel (kg) | 0.871 |
Volume (cm3) | 1806 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2.5 mm.Finish: zinc-chromatised.Double ball bearing with hardened races swivel head.Manufactured to European standards EN 12530.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
