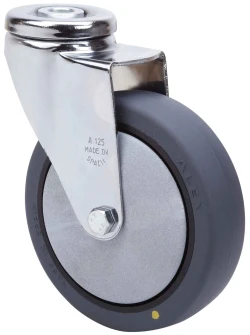

A SERIES-PGC 2-1600

See comparative

Code: 2-1600

Conductive grey polyurethane castors. Especially indicated to support high-loads up to 100 Kg.

It is used in: operating rooms, hopitals, beds, food industry and stretchers.

PGC: does not leave marks on floor. Smooth and noiseless castor. Conductive.

Components

Brackets

Made of pressed steel up to 2.5 mm. Finish: zinc-chromatised. Double ball bearing with hardened races swivel head. Manufactured to European standards EN 12530.

Wheel

Antistatic grey polyurethane tyre on polypropylene centre.Shore A 95º

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

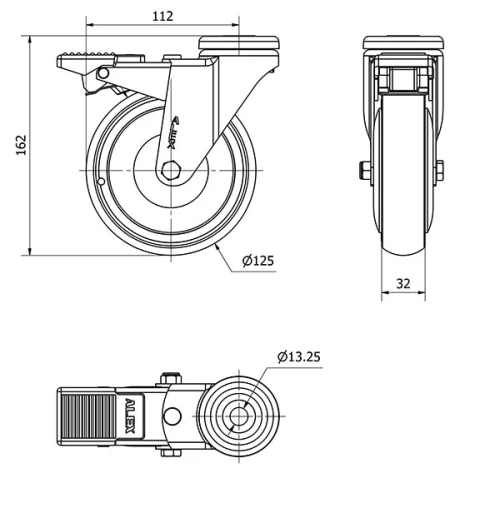

Technical Data 2-1600

EAN:

8422202216003

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Hardness of tread:

55º-60º SHORE D

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

112

Overall height (mm):

162

Load:

125

Unit Weight of the wheel (kg):

1,006

Volume (cm³):

1565

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-1594
