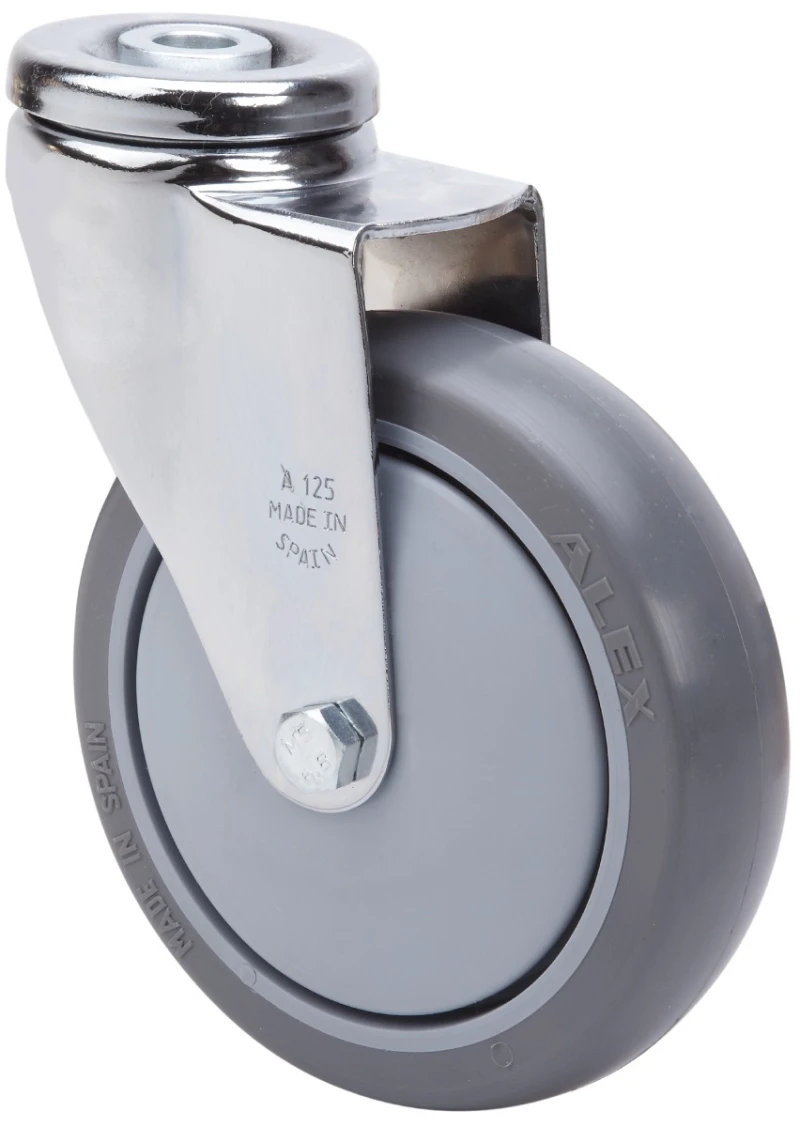

A SERIES-PU 2-1103
EAN 8422202211039
Injected polyurethane castors. Especially indicated to support high-loads ups to 125 Kg.
It is used in: food industry.
PU: long useful life. Noiseless, clean and undeformable.

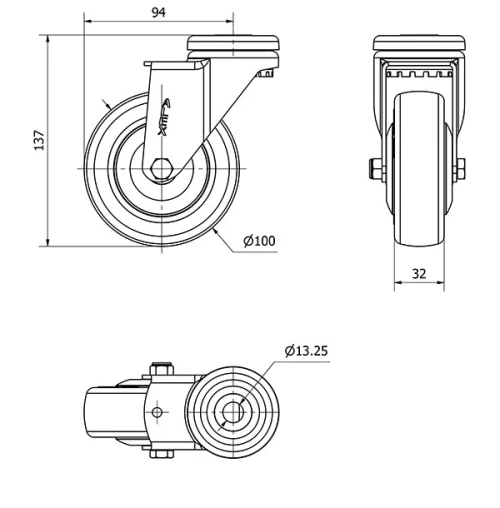

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 55º-60º SHORE D |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 32 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 94 |
Overall height (mm) | 137 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.717 |
Volume (cm3) | 1019 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel up to 2.5 mm. Finish: zinc-chromatised. Double ball bearing with hardened races swivel head. Manufactured to European standards EN 12530.

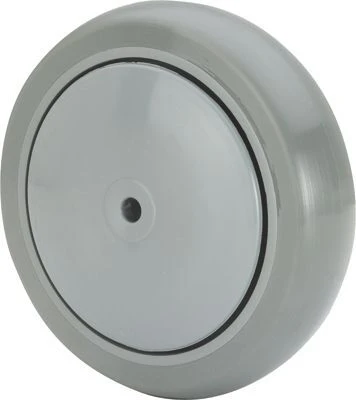

Wheel
Grey polyurethane tyre on polypropylene centre.95º shore A
Temperature range: -25º ÷ +80º
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
