HLS SERIES-DEGB 2-4409

See comparative

Code: 2-4409

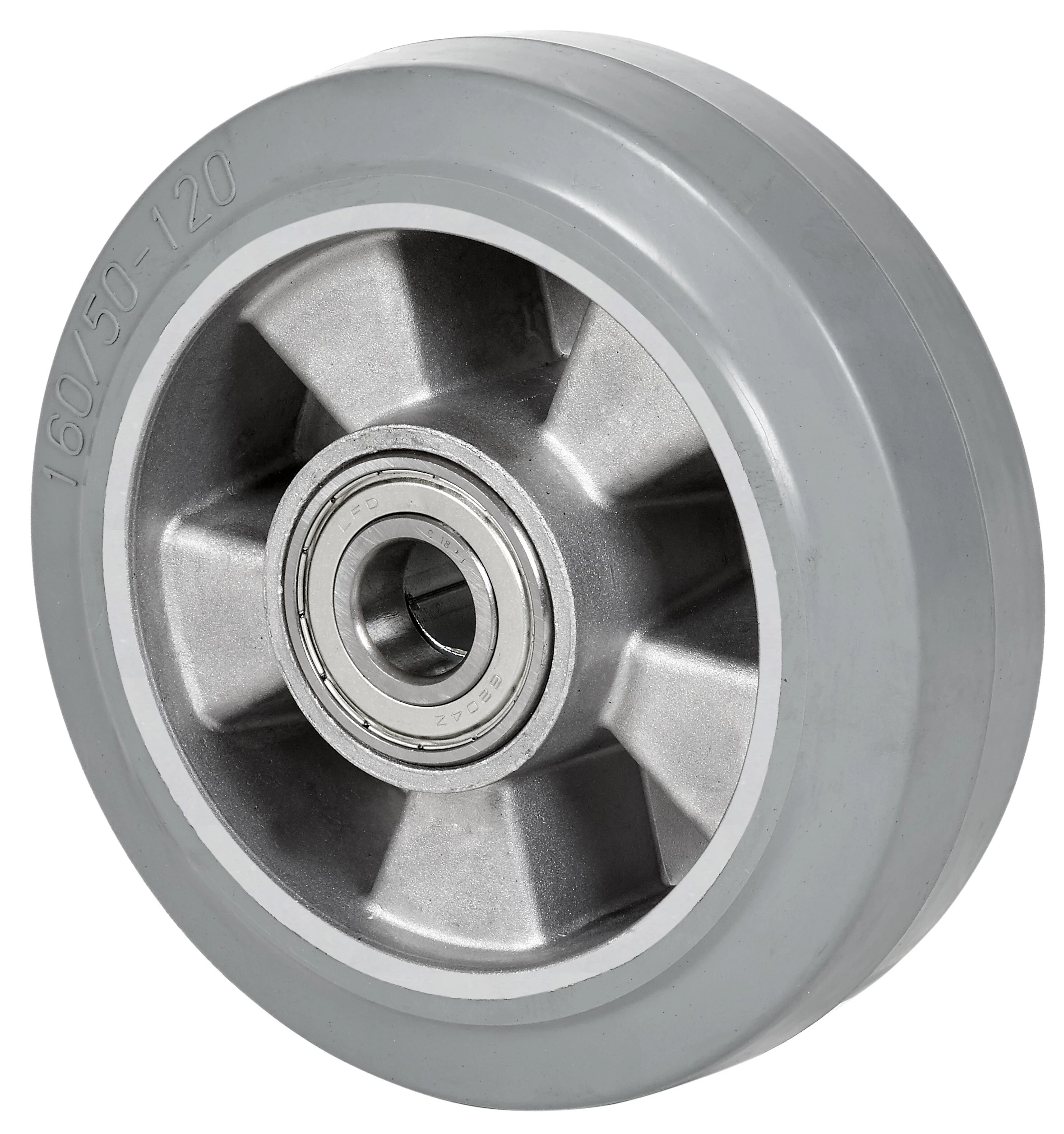

Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg. With highly resistant spring loaded suspension, perfect for uneven surfaces thanks to its high shock absorption.

Used in car body factories, internal logistics, transport equipment, outdoor areas, mobile grandstands, lfting platforms, transport carts, military missions material, heavy machinery and portable cranes.

Suitable for mechanical engineering projects by draftsmen and project executors.

DEGB wheel: perfect for medium duty loads' manual travelling. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

Components

Brackets

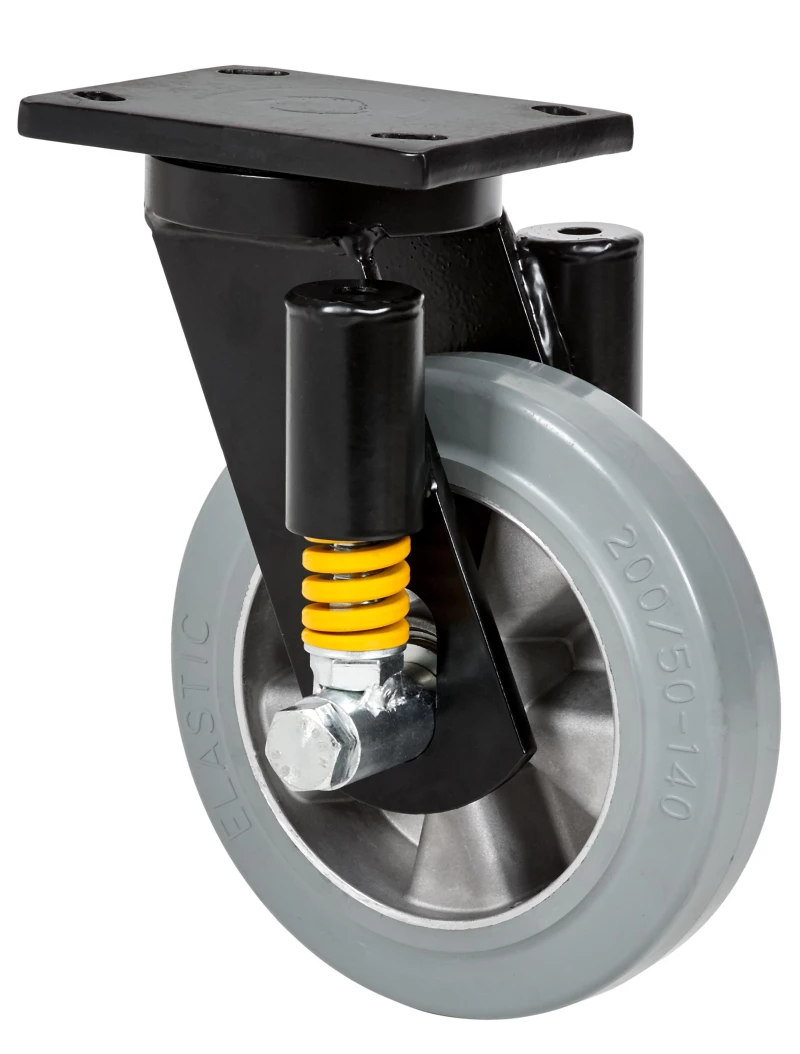

Made of welded steel from 8mm. to 18mm. thickness. Black paint finish. Bracket with highly resistant spring loaded suspension. Spring travel up to 24,5mm for a load of 700kg. Especially designed to absorb impacts, collisions and uneven surfaces. Manufactured according to European Standards EN12532/12533

Wheel

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Very Good

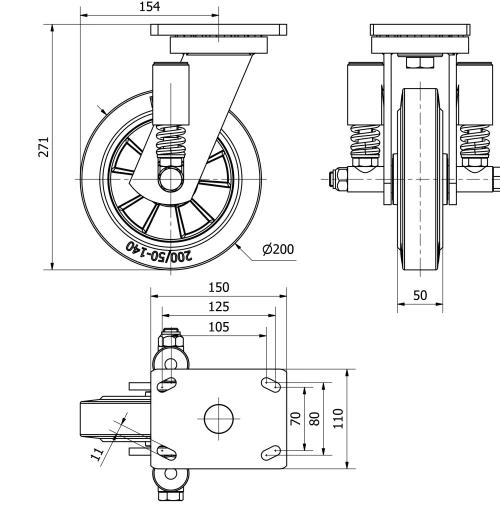

Technical Data 2-4409

EAN:

8422202244099

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º-70º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

154

Overall height (mm):

271

Load:

450

Unit Weight of the wheel (kg):

Volume (cm³):

6826
