HLS SERIES-DE 2-3186
EAN 8422202231860
Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A, especially indicated to support high-loads up to 500 Kg. With highly resistant spring loaded suspension, ideal in uneven surfaces due to its shock absorption.
It is used in: carbody factories, internal logistics, transport tools, outdoor areas, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery and mobile cranes.
Suitable for mechanical engineering projects by draftsmen and project executors.
DE: Ideal for the manual displacement of medium-loads. Noiseless. Absorption to impacts and vibrations. High protection of floors and equipment.

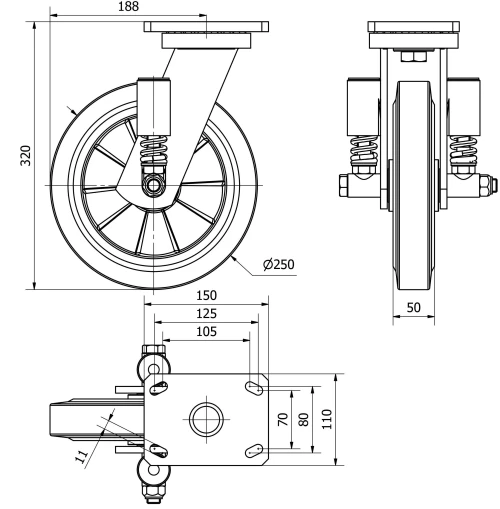

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 250 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 188 |
Overall height (mm) | 320 |
Load | 500 |
Unit Weight of the wheel (kg) | 10.04 |
Volume (cm3) | 9258 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of welded steel from 8mm. to 18mm. thickness. Black paint finish. Bracket with highly resistant spring loaded suspension. Spring travel up to 24,5mm for a load of 700kg. Especially designed to absorb impacts, collisions and uneven surfaces. Manufactured according to European Standards EN12532/12533
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
