HLS SERIES-DE 2-3190

Code: 2-3190

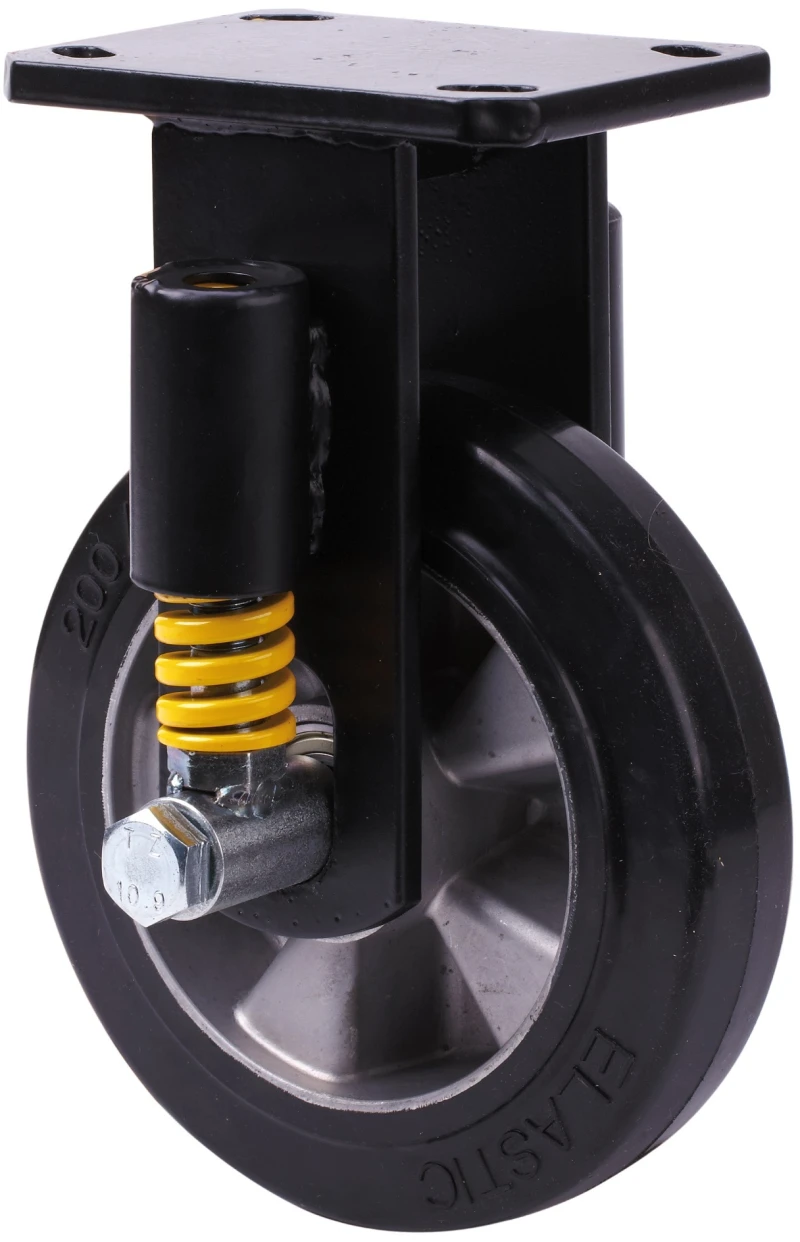

Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A, especially indicated to support high-loads up to 500 Kg. With highly resistant spring loaded suspension, ideal in uneven surfaces due to its shock absorption.

It is used in: carbody factories, internal logistics, transport tools, outdoor areas, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery and mobile cranes.

Suitable for mechanical engineering projects by draftsmen and project executors.

DE: Ideal for the manual displacement of medium-loads. Noiseless. Absorption to impacts and vibrations. High protection of floors and equipment.

Components

Brackets

Made of welded steel from 8mm. to 18mm. thickness. Black paint finish. Bracket with highly resistant spring loaded suspension. Spring travel up to 24,5mm for a load of 700kg. Especially designed to absorb impacts, collisions and uneven surfaces. Manufactured according to European Standards EN12532/12533

Wheel

Elastic rubber tyre on Aluminium centre. 70º Shore A

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

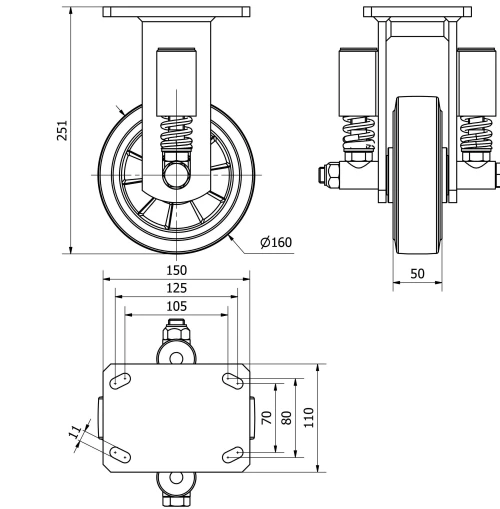

Technical Data 2-3190

EAN:

8422202231907

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Hardness of tread:

70º SHORE A

Bearing:

Ball

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

251

Load:

350

Unit Weight of the wheel (kg):

Volume (cm³):

4142
