Manufacturers since 1958
Ruedas Alex

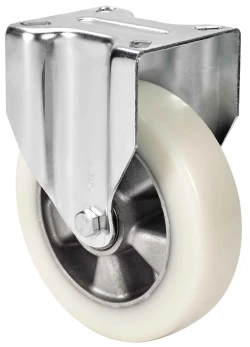

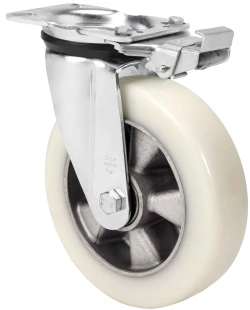

Castors with aluminium centre and white cast poluyrethane tyre with a hardness of 88º Shore A, especially indicated to support high-loads up to 650 Kg.

It is used in: logistics transport tools, containers, industrial tansport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, project executors, draftsmen, mechanical engineering.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

ZVR medium-heavy duty industrial castors for industrial transport, used in logistics transport, tool trolleys, internal logistics...

AUSB: recommended for speed displacements (up to 16 Km/h). High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

ZVR SERIES-AUSB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4180 160 500 50 Bearing: Ball 140x110 105x80 10 203 137
2-4187 200 650 50 Bearing: Ball 140x110 105x80 10 244 160

ZVR SERIES-AUSB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4181 160 500 50 Bearing: Ball 136x116 105x80 10 203 --
2-4188 200 650 50 Bearing: Ball 136x116 105x80 10 244 --

ZVR SERIES-AUSB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4182 160 500 50 Bearing: Ball 140x110 105x80 10 203 137
2-4189 200 650 50 Bearing: Ball 140x110 105x80 10 244 160

ZVR SERIES-AUSB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4183 160 500 50 Bearing: Ball 140x110 105x80 10 203 137
2-4190 200 650 50 Bearing: Ball 140x110 105x80 10 244 160

Other castors SERIE ZVR

SERIE ZVR-HU
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-HUAB
Diametro 150-200 mm
Carga 600-700 kg
SERIE ZVR-AUB
Diametro 160-250 mm
Carga 600-700 kg
SERIE ZVR-AUGB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-FT
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-TA
Diametro 150-200 mm
Carga 650-700 kg
SERIE ZVR-AUAB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-DE
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-DEGB
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-AUAGB
Diametro 160-200 mm
Carga 500-650 kg
