Which castors do you need?

SERIE ZVR-DEGB

Categories

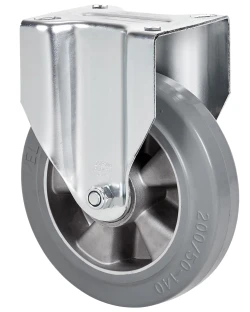

Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg.

Used in: transport equipment, waste bins, industrial transport equipment, tool trolleys, mobile grandstands, food industries, military missions material, sweepers, polishers, heavy machinery, portable cranes, lift tables , metalwork industries and mechanical engineering. Mainly used in the aeronautic sector, railway and automobile factories and food industries.

Suitable for mechanical engineering projects by draftsmen and project executors.

DEGB wheel: perfect for medium duty loads' manual movement. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

See comparative

ZVR SERIES-DEGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4372 160 350 50 Bearing: Ball 140x110 105x80 10 203 137
2-4376 200 450 50 Bearing: Ball 140x110 105x80 10 244 160
2-5226 250 500 50 Bearing: Ball 140x110 110x84 10 296 180

ZVR SERIE-DEGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4373 160 350 50 Bearing: Ball 136x116 105x80 10 203 --
2-4377 200 450 50 Bearing: Ball 136x116 105x80 10 244 --
2-5227 250 500 50 Bearing: Ball 136x116 110x84 10 296 --

ZVR SERIE-DEGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4374 160 350 50 Bearing: Ball 140x110 105x80 10 203 137
2-4378 200 450 50 Bearing: Ball 140x110 105x80 10 244 160
2-5228 250 500 50 Bearing: Ball 140x110 110x84 10 296 180

ZVR SERIE-DEGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4375 160 350 50 Bearing: Ball 140x110 105x80 10 203 137
2-4379 200 450 50 Bearing: Ball 140x110 105x80 10 244 160
2-0408 250 500 50 Bearing: Ball 140x110 110x84 10 296 180

Other castors SERIE ZVR

SERIE ZVR-HU
SERIE ZVR-HU
Ampliamos Gamma
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-HUAB
SERIE ZVR-HUAB
Diametro 150-200 mm
Carga 600-700 kg
SERIE ZVR-AUB
SERIE ZVR-AUB
Ampliamos Gamma
Diametro 160-250 mm
Carga 600-700 kg
SERIE ZVR-AUGB
SERIE ZVR-AUGB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-FT
SERIE ZVR-FT
Ampliamos Gamma
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-TA
SERIE ZVR-TA
Diametro 150-200 mm
Carga 650-700 kg
SERIE ZVR-AUAB
SERIE ZVR-AUAB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-AUSB
SERIE ZVR-AUSB
Diametro 160-200 mm
Carga 500-650 kg
SERIE ZVR-DE
SERIE ZVR-DE
Novedad
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-AUAGB
SERIE ZVR-AUAGB
Diametro 160-200 mm
Carga 500-650 kg
