Ruedas Alex

Castors with aluminium centre and green polyurethane tyre with a hardness of 80º Shore A, especially indicated to support high-loads up to 700 Kg.

It is used in: logistics transport, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, project executors, draftsmen, mechanical engineering.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops, industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

ZVR medium-heavy duty industrial castors for industrial transport, used in logistics transport, tool trolleys, internal logistics...

AUGB: Green polyurethane for heavy duty works. Absorption to impacts.

Higher elasticity.

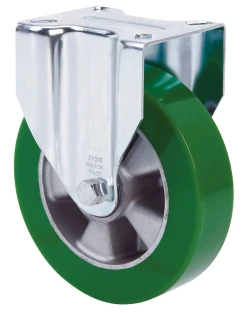

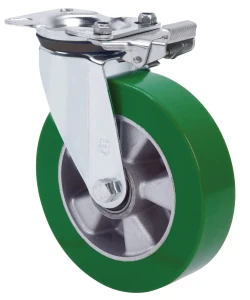

ZVR SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3920 160 550 50 Bearing: Ball 140x110 105x80 10 203 137
2-3845 200 700 50 Bearing: Ball 140x110 105x80 10 244 160

ZVR SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3921 160 550 50 Bearing: Ball 136x116 105x80 10 203 --
2-3846 200 700 50 Bearing: Ball 136x116 105x80 10 244 --

ZVR SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3922 160 550 50 Bearing: Ball 140x110 105x80 10 203 137
2-3847 200 700 50 Bearing: Ball 140x110 105x80 10 244 160

ZVR SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3923 160 550 50 Bearing: Ball 140x110 105x80 10 203 137
2-3848 200 700 50 Bearing: Ball 140x110 105x80 10 244 160

Other castors SERIE ZVR

SERIE ZVR-HU
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-HUAB
Diametro 150-200 mm
Carga 600-700 kg
SERIE ZVR-AUB
Diametro 160-250 mm
Carga 600-700 kg
SERIE ZVR-FT
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-TA
Diametro 150-200 mm
Carga 650-700 kg
SERIE ZVR-AUAB
Diametro 160-200 mm
Carga 550-700 kg

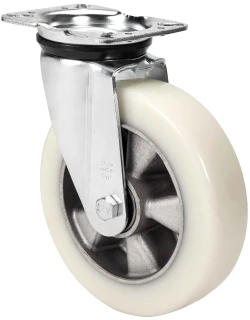

SERIE ZVR-AUSB
Diametro 160-200 mm
Carga 500-650 kg
SERIE ZVR-DE
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-DEGB
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-AUAGB
Diametro 160-200 mm
Carga 500-650 kg
