ZVR SERIES-AUGB 2-3846

Code: 2-3846

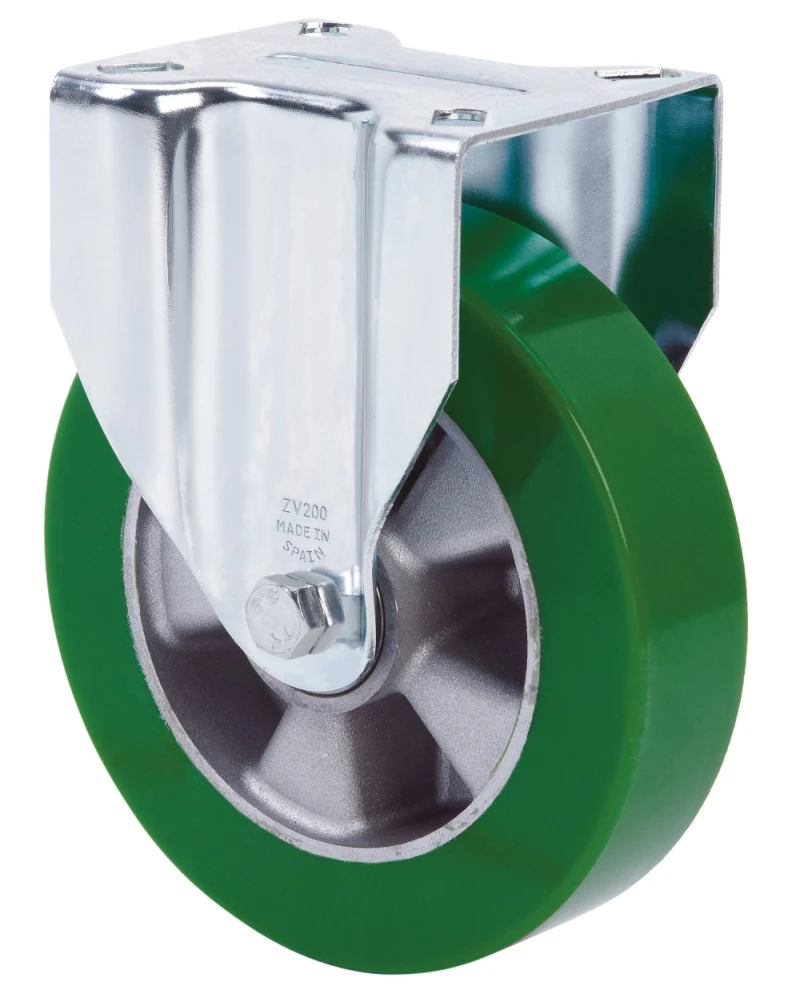

Castors with aluminium centre and green polyurethane tyre with a hardness of 80º Shore A, especially indicated to support high-loads up to 700 Kg.

It is used in: logistics transport, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, project executors, draftsmen, mechanical engineering.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops, industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

ZVR medium-heavy duty industrial castors for industrial transport, used in logistics transport, tool trolleys, internal logistics...

AUGB: Green polyurethane for heavy duty works. Absorption to impacts.

Higher elasticity.

Components

Brackets

Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533

Wheel

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

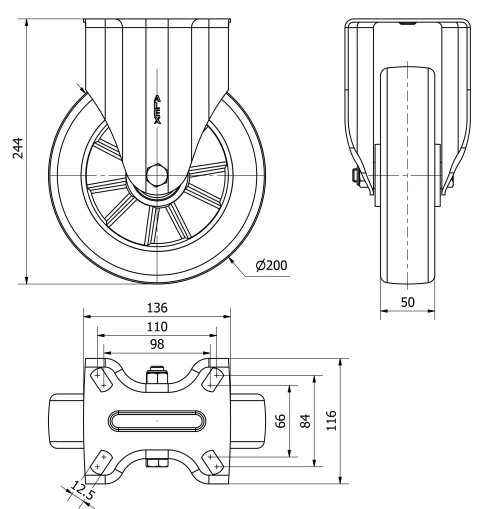

Technical Data 2-3846

EAN:

8422202238463

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

80º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

244

Load:

700

Unit Weight of the wheel (kg):

3,12

Volume (cm³):

5660,8
