SERIE ZVR-HU

Categories

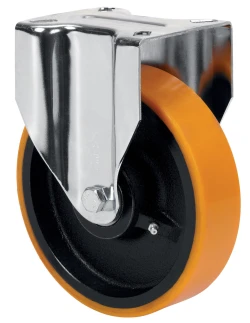

Castors with steel centre and cast poluyrethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 700 Kg.

It is used in: logistics transport, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, project executors, draftsmen, mechanical engineering.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops, industrial activities.

HU: High load capacity and absorption to impacts. Floor protection. Recommended for rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.



See comparative

ZVR SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3865 150 650 50 Bearing: Ball 140x110 105x80 10 198 132
2-3869 200 700 50 Bearing: Ball 140x110 105x80 10 244 160
2-0410 250 700 50 Bearing: Ball 140x110 110x84 10 296 180
Gamma Amplification

ZVR SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3866 150 650 50 Bearing: Ball 136x116 105x80 10 198 --
2-3870 200 700 50 Bearing: Ball 136x116 105x80 10 244 --
2-0413 250 700 50 Bearing: Ball 136x116 110x84 10 296 --
Gamma Amplification

ZVR SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3867 150 650 50 Bearing: Ball 140x110 105x80 10 198 132
2-3871 200 700 50 Bearing: Ball 140x110 105x80 10 244 160
2-0414 250 700 50 Bearing: Ball 140x110 110x84 10 296 180
Gamma Amplification

ZVR SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3868 150 650 50 Bearing: Ball 140x110 105x80 10 198 132
2-3872 200 700 50 Bearing: Ball 140x110 105x80 10 244 160
2-0415 250 700 50 Bearing: Ball 140x110 110x84 10 296 180
Gamma Amplification

Other castors SERIE ZVR

SERIE ZVR-HUAB
SERIE ZVR-HUAB
Diametro 150-200 mm
Carga 600-700 kg
SERIE ZVR-AUB
SERIE ZVR-AUB
Ampliamos Gamma
Diametro 160-250 mm
Carga 600-700 kg
SERIE ZVR-AUGB
SERIE ZVR-AUGB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-FT
SERIE ZVR-FT
Ampliamos Gamma
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-TA
SERIE ZVR-TA
Diametro 150-200 mm
Carga 650-700 kg
SERIE ZVR-AUAB
SERIE ZVR-AUAB
Diametro 160-200 mm
Carga 550-700 kg

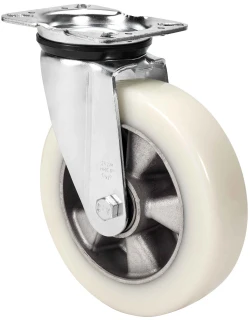

SERIE ZVR-AUSB
SERIE ZVR-AUSB
Diametro 160-200 mm
Carga 500-650 kg
SERIE ZVR-DE
SERIE ZVR-DE
Novedad
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-DEGB
SERIE ZVR-DEGB
Ampliamos Gamma
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-AUAGB
SERIE ZVR-AUAGB
Diametro 160-200 mm
Carga 500-650 kg
