Which castors do you need?
ZVR SERIES-HU 2-3867
EAN 8422202238678

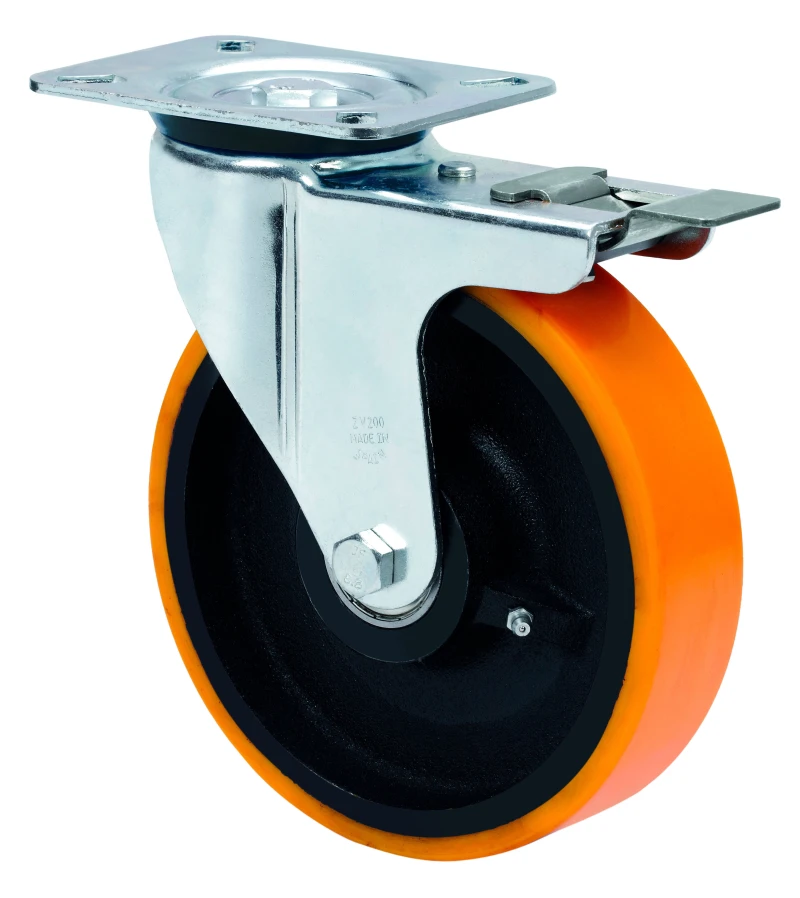

Castors with steel centre and cast poluyrethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 700 Kg.
It is used in: logistics transport, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, project executors, draftsmen, mechanical engineering.
Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops, industrial activities.
HU: High load capacity and absorption to impacts. Floor protection. Recommended for rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

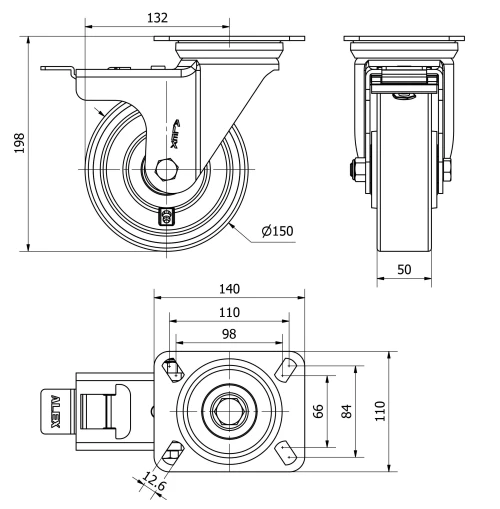

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 150 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 132 |
Overall height (mm) | 198 |
Load | 650 |
Unit Weight of the wheel (kg) | 5.12 |
Volume (cm3) | 4312.44 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
