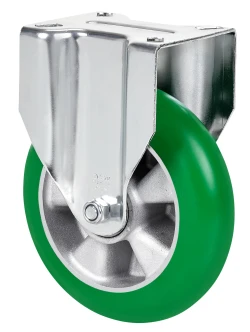

Castors with aluminium centre and green poluyrethane tyre with a hardness of 80º Shore A, especially indicated to support high-loads up to 650 Kg.

It is used in: logistics transport, AGV, containers, industrial transport, tool trolleys, mobile platforms, food industry, logistics for military missions material, sweeping machines, polishing machines, heavy machinery, mobile cranes, elevating tables, boilers, containers, project executors, draftsmen, mechanical engineering.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops, industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

ZVR medium-heavy duty industrial castors for industrial transport, used in logistics transport, tool trolleys, internal logistics...

AUAGB Wheel: High load capacity green polyurethane. High shock absorption. Low turning resistance and easier rolling.

ZVR SERIES-AUAGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4380 160 500 50 Bearing: Ball 140x110 105x80 10 203 137
2-4384 200 650 50 Bearing: Ball 140x110 105x80 10 244 160

ZVR SERIES-AUAGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4381 160 500 50 Bearing: Ball 136x116 105x80 10 203 --
2-4385 200 650 50 Bearing: Ball 136x116 105x80 10 244 --

ZVR SERIES-AUAGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4382 160 500 50 Bearing: Ball 140x110 105x80 10 203 137
2-4386 200 650 50 Bearing: Ball 140x110 105x80 10 244 160

ZVR SERIES-AUAGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4383 160 500 50 Bearing: Ball 140x110 105x80 10 203 137
2-4387 200 650 50 Bearing: Ball 140x110 105x80 10 244 160

Other castors SERIE ZVR

SERIE ZVR-HU
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-HUAB
Diametro 150-200 mm
Carga 600-700 kg
SERIE ZVR-AUB
Diametro 160-250 mm
Carga 600-700 kg
SERIE ZVR-AUGB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-FT
Diametro 150-250 mm
Carga 650-700 kg
SERIE ZVR-TA
Diametro 150-200 mm
Carga 650-700 kg
SERIE ZVR-AUAB
Diametro 160-200 mm
Carga 550-700 kg
SERIE ZVR-AUSB
Diametro 160-200 mm
Carga 500-650 kg
SERIE ZVR-DE
Diametro 160-250 mm
Carga 350-500 kg
SERIE ZVR-DEGB
Diametro 160-250 mm
Carga 350-500 kg
