ZVR SERIES-DEGB 2-4376

Code: 2-4376

Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg.

Used in: transport equipment, waste bins, industrial transport equipment, tool trolleys, mobile grandstands, food industries, military missions material, sweepers, polishers, heavy machinery, portable cranes, lift tables , metalwork industries and mechanical engineering. Mainly used in the aeronautic sector, railway and automobile factories and food industries.

Suitable for mechanical engineering projects by draftsmen and project executors.

DEGB wheel: perfect for medium duty loads' manual movement. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

Components

Brackets

Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533

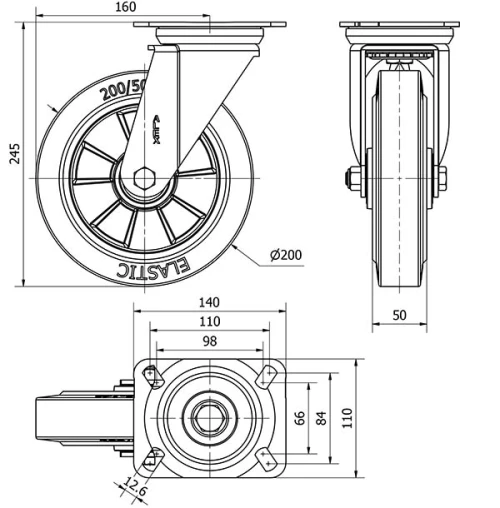

Technical Data 2-4376

EAN:

8422202243764

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

70º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

160

Overall height (mm):

244

Load:

450

Unit Weight of the wheel (kg):

3,39

Volume (cm³):

5985
