ZVR SERIE-DEGB 2-4379
EAN 8422202243795
Grey elastic rubber tyre (70º Shore A hardness) on aluminium centre. Especially designed to support heavy loads up to 450 Kg.
Used in: transport equipment, waste bins, industrial transport equipment, tool trolleys, mobile grandstands, food industries, military missions material, sweepers, polishers, heavy machinery, portable cranes, lift tables , metalwork industries and mechanical engineering. Mainly used in the aeronautic sector, railway and automobile factories and food industries.
Suitable for mechanical engineering projects by draftsmen and project executors.
DEGB wheel: perfect for medium duty loads' manual movement. Noiseless. Non-marking. High absorption to impacts and vibrations. Maximum equipment and floor protection. Perfect for uneven surfaces.

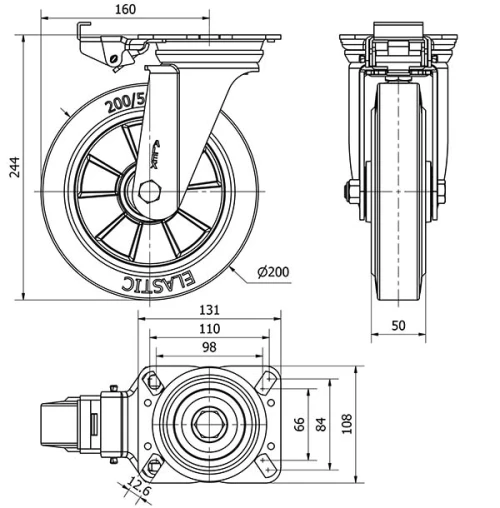

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Directional Lock |
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 70 |
Hardness of tread | 70º SHORE A |
Bearing | Ball |
Color | Gray |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 160 |
Overall height (mm) | 244 |
Load | 450 |
Unit Weight of the wheel (kg) | 3650 |
Volume (cm3) | 5762 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Double ball bearing reinforced with hardened ball races. Dust-proof cover in the swivel head bearing with grease nipple. Manufactured to European Standards EN 12532/12533
